Diamond saw blades are among the most common tools in stone cutting, demolition, and industrial processing. They are sharp and durable when new, but many operators have experienced a sudden break during use. Do diamond saw blades actually break? What causes it? This article breaks it down for you.
1. Yes, Diamond Saw Blades Can Break
The answer is yes: diamond saw blades can break under extreme conditions. The core is high-strength alloy steel, and the segment is made of diamond particles sintered with a metal bond. Although the overall hardness is very high, uneven stress, overload impact, and fatigue cracks can all lead to fracture. In Huada Jinke’s quality inspection of diamond cutting blades, core flaw detection and segment welding strength are mandatory checks to reduce breakage risk.
2. Common Causes of Breakage
1. Excessive feed pressure. Operators press down hard to cut faster, causing the segment to bear stress beyond its design limit. Once diamond particles fall off, the remaining segment loses support and is prone to breaking along with the core.
2. Mismatched blade and material. Using a thin tile blade to cut reinforced concrete will fail because the core is too thin and lacks rigidity. Conversely, using a concrete blade on thin glass will cause excessive vibration and cracking.
3. Improper installation. Uneven flange clamping, loose spindle, or unsecured bolts cause eccentric vibration at high speed. The alternating stress from this vibration rapidly amplifies and eventually leads to fatigue fracture.
4. Dry cutting without cooling. Wet-cutting blades running dry for long periods cause uneven thermal expansion of the core, leading to stress concentration, cracking, and eventual breakage.
5. Manufacturing defects. Core flaws, porous welds, or uneven diamond concentration are hidden defects that gradually manifest during normal use and become the starting point of fracture.
3. How to Reduce Breakage Risk

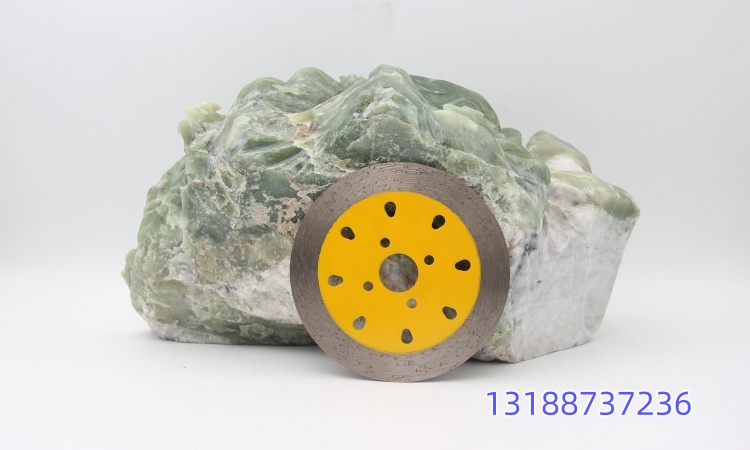

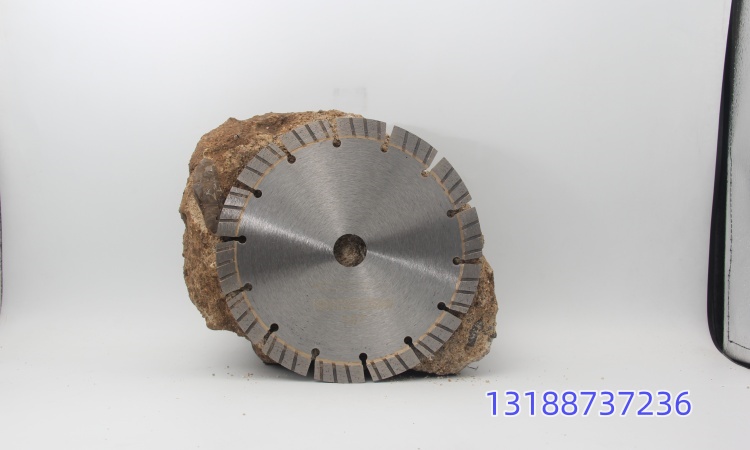

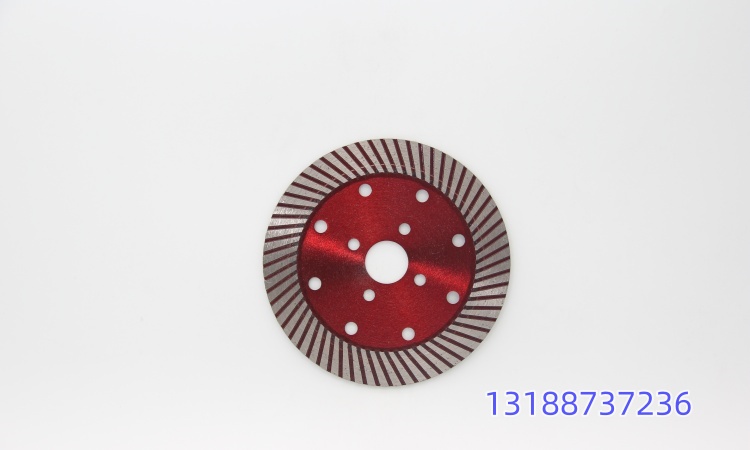

Choose the right spec. Use continuous or turbo rims for stone, segmented teeth for concrete, and fine continuous rims for tiles. Matching material hardness, blade diameter, and machine rpm is the first step to prevent breakage.
Control feed rate. Let the blade feed itself without manual pressure. Slow down when hitting hard spots like rebar or quartz veins to avoid impact loading.
Check installation. After every blade change, check flange fit, spindle clearance, and bolt torque. Stop and investigate if eccentric vibration exceeds 0.15mm.
Ensure cooling. Wet cutting must have water flow covering the segment leading edge. Dry-cut blades should also limit continuous cutting time to avoid heat buildup.
Replace regularly. When segment wear exceeds one-third, or when visible cracks or abnormal vibration appear, replace the blade. Continuing to use it increases fracture risk exponentially.
4. Emergency Handling After Breakage
If the blade breaks, stop the machine immediately and disconnect power. Inspect the fracture surface: a clean break indicates overload impact; a serrated break indicates fatigue cracking. Clear debris, check flange and spindle for damage, and confirm the new blade matches the spec before reinstalling.
5. Buying Advice
Don’t choose diamond saw blades by price alone. Look at core material, segment formula, welding process, and factory inspection. Reputable manufacturers like Huada Jinke perform core flaw detection and segment strength tests on every diamond cutting blade, with breakage rates far lower than small workshops. For bulk purchases, request factory reports and third-party test data to avoid future breakage disputes.
