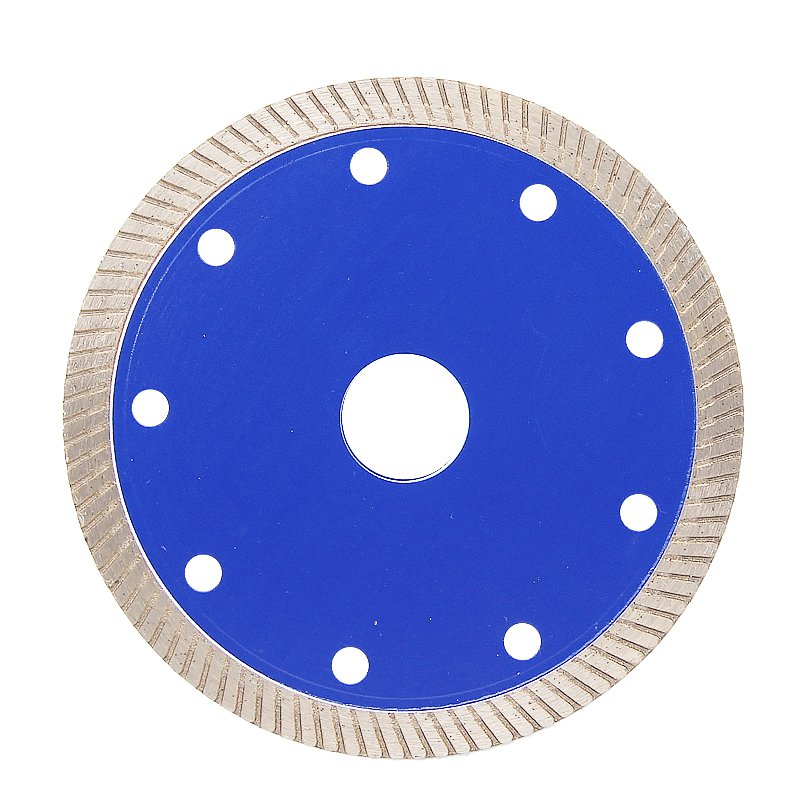

110mm Blue Corrugated Ceramic Tile Blade
110mm Blue Corrugated Ceramic Tile Blade. Diameter 110mm, Bore 20mm, Segment height 10mm, Thickness 1.2mm. Compare machine fit, application and OEM options.
- Diameter: 110mm
- Bore: 20mm
- Segment height: 10mm
- Thickness: 1.2mm
- Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.
Product Details
Updated:
Use the 110mm Blue Corrugated Ceramic Tile Blade specification when comparing a sample for ceramic and tile cutting. The practical selection question is whether its rim, dimensions and operating method suit ceramic tile, porcelain, rock slab or similar sheet material.
Product reference: Reference #2740 separates this blade from similar sizes in the range.
Specification supplied for review

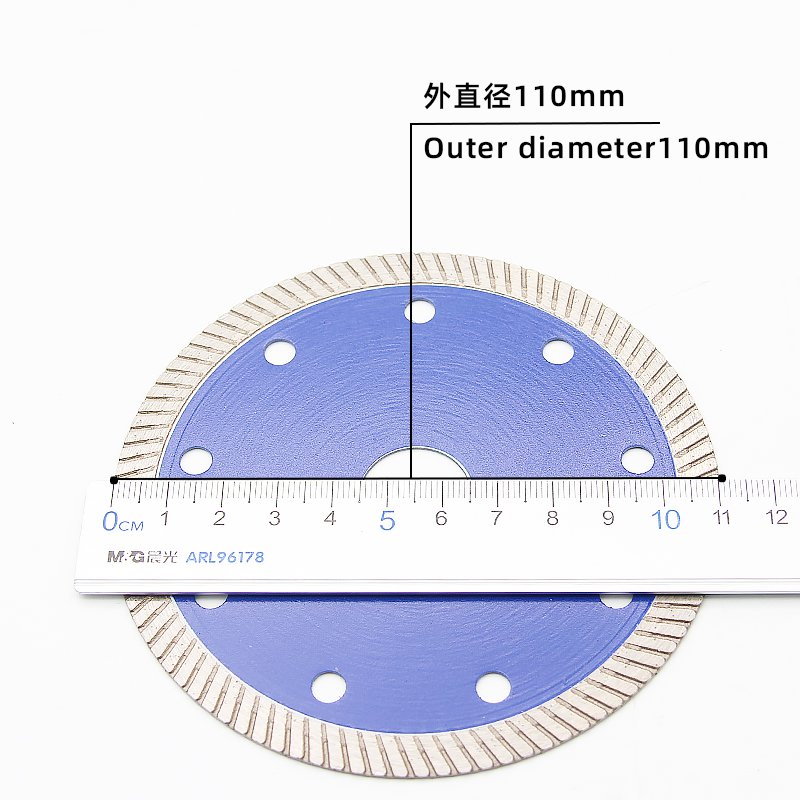

- Diameter: 110mm

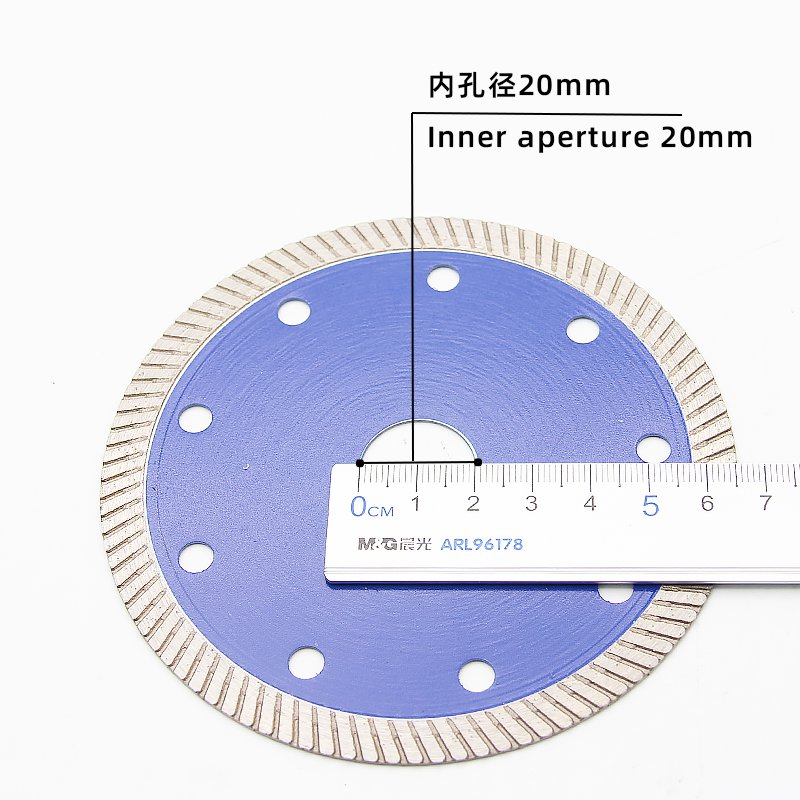

- Bore: 20mm
- Segment height: 10mm
- Thickness: 1.2mm
- Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.
The stated diameter is 110mm, with bore information shown as 20mm. Measure the spindle and check the guard capacity before choosing a reduction ring or flange arrangement.
Design considerations
Listed use: ceramics, tiles, rock slabs, microcrystalline stone cutting.. The patterned rim should be evaluated for debris clearance, cooling and the required edge finish on the intended material.
Compare this entry with other ceramic and tile cutting blades before selecting a sample.
How this reference differs
This blue 110mm corrugated tile blade should be evaluated by rim geometry and stated dimensions rather than colour. Use the same porcelain or ceramic batch for comparisons, and record chipping on both the entry and exit edges for review with the factory. The corrugated profile should be compared with a continuous rim using equal feed and coolant conditions. State the tile thickness and surface finish in the report so colour variants are not mistaken for different technical specifications.
Preparing an OEM enquiry
The OEM brief should identify the machine, spindle, RPM, material and desired balance between speed, finish and service life. Commercial terms should refer to the approved sample or drawing.
Sample acceptance checks
Check bore fit, rotation direction and maximum RPM before the trial. After cutting, compare segment wear on both sides; uneven wear can indicate alignment or coolant problems.
Send a product enquiry and include reference #2740 with the machine and material details.
