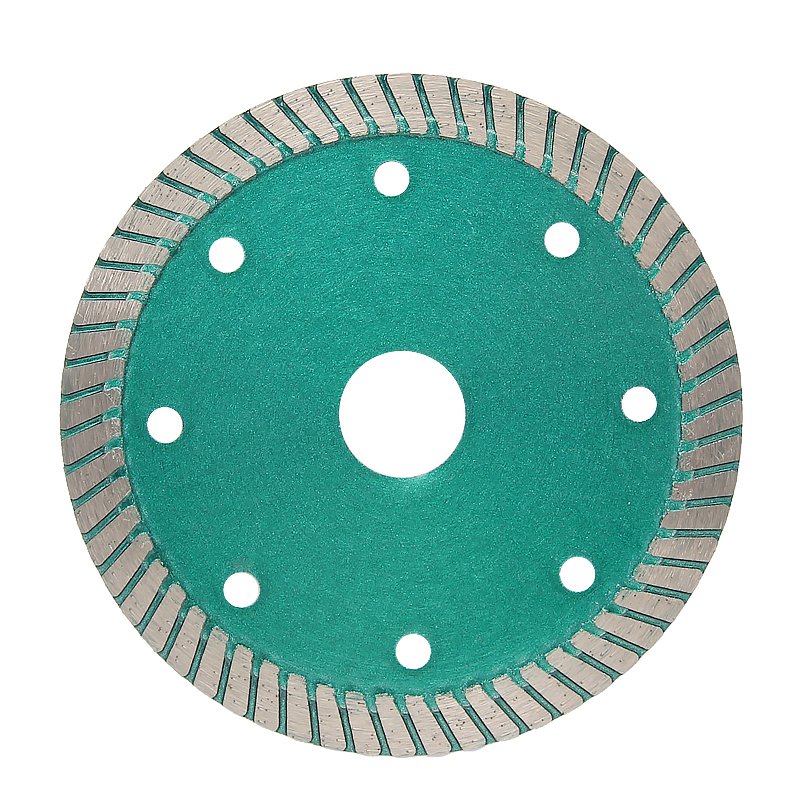

110mm Corrugated Ceramic Tile Blade with 1.1mm Thickness

Updated: 2026-10-08

This page records the working specification for the 110mm Corrugated Ceramic Tile Blade with 1.1mm Thickness. It is intended as a comparison point for ceramic and tile cutting enquiries involving ceramic tile, porcelain, rock slab or similar sheet material.

Product reference: Keep reference #2522 on the enquiry, sample label and approval record.

Product specification

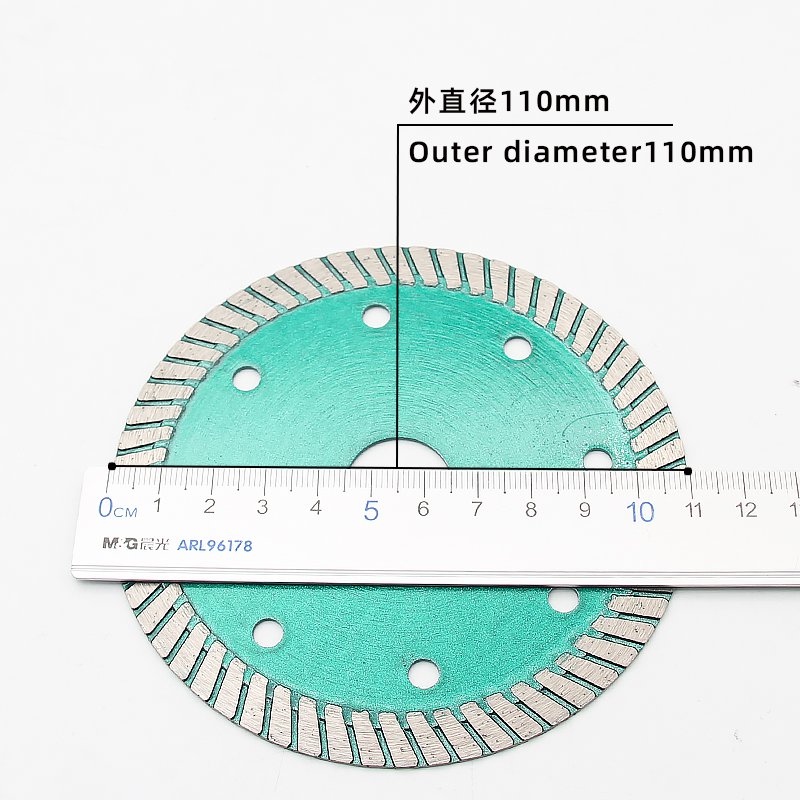

• Diameter: 110mm

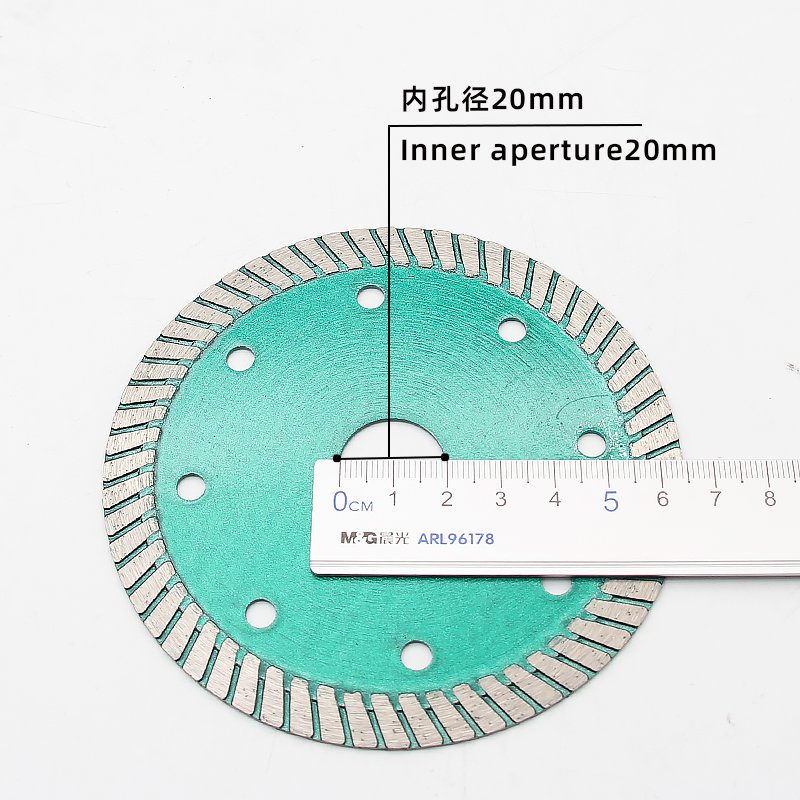

• Bore: 20mm

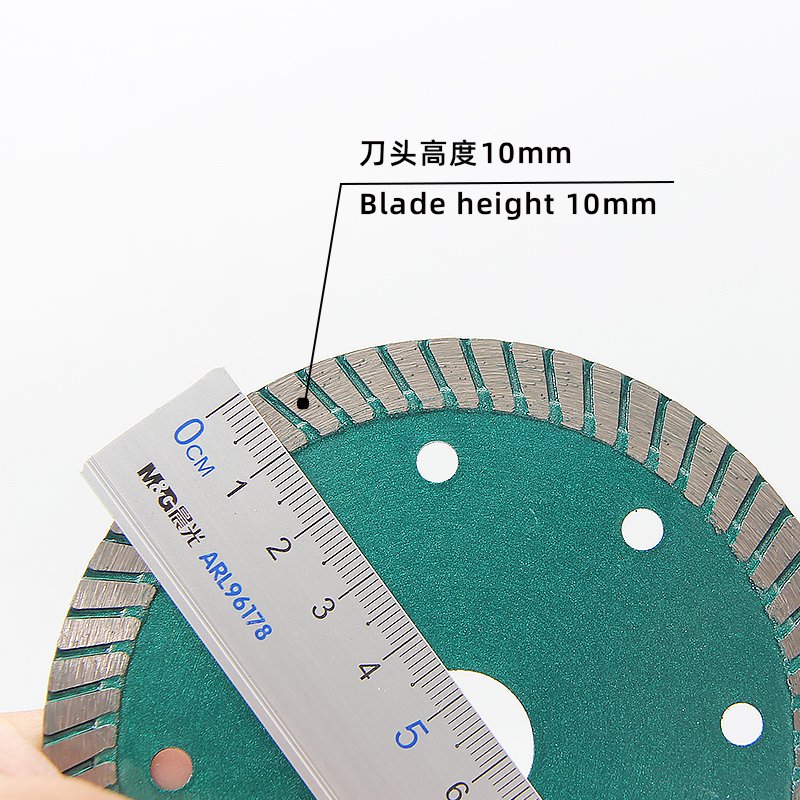

• Segment height: 10mm
• Thickness: 1.1mm
• Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.

The catalogue dimensions, 110mm and 20mm, need to be read with the machine RPM and flange data. Record those values on the purchase specification.

Application review

Listed use: ceramics, tiles, rock slabs, microcrystalline stone cutting.. The patterned rim should be evaluated for debris clearance, cooling and the required edge finish on the intended material.

See more ceramic and tile cutting product references for another cutting method or rim design.

Data needed before pricing

A useful purchase enquiry includes arbor size, machine speed, material name, thickness, cooling method and target quantity. These details allow the factory to check the requested configuration before pricing.

How to validate the blade

Inspect the blade before mounting and carry out a short no-load check in a safe area. During cutting, follow the machine instructions and stop when sound, resistance or vibration changes.

Send a product enquiry and include reference #2522 with the machine and material details.
