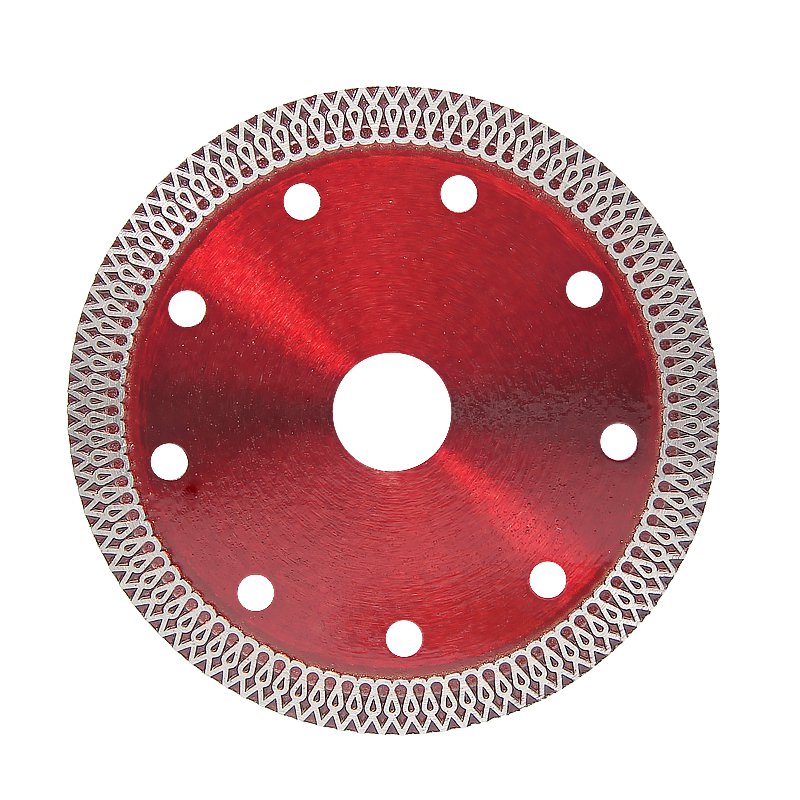

115mm Transparent Red Ceramic Tile Blade

Updated: 2026-10-08

The 115mm Transparent Red Ceramic Tile Blade is listed for ceramic and tile cutting. Its suitability depends on the workpiece and machine setup, so the diameter marking should be checked together with edge finish, tile hardness and chipping tolerance.

Product reference: The traceable catalogue reference for this design is #2784.

Blade data for quotation

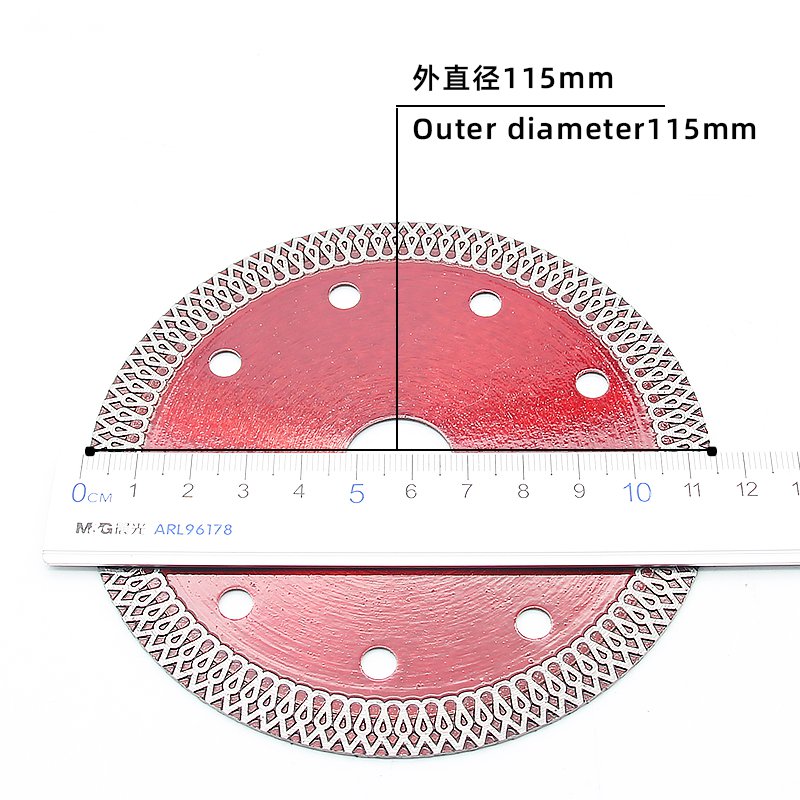

• Diameter: 115mm

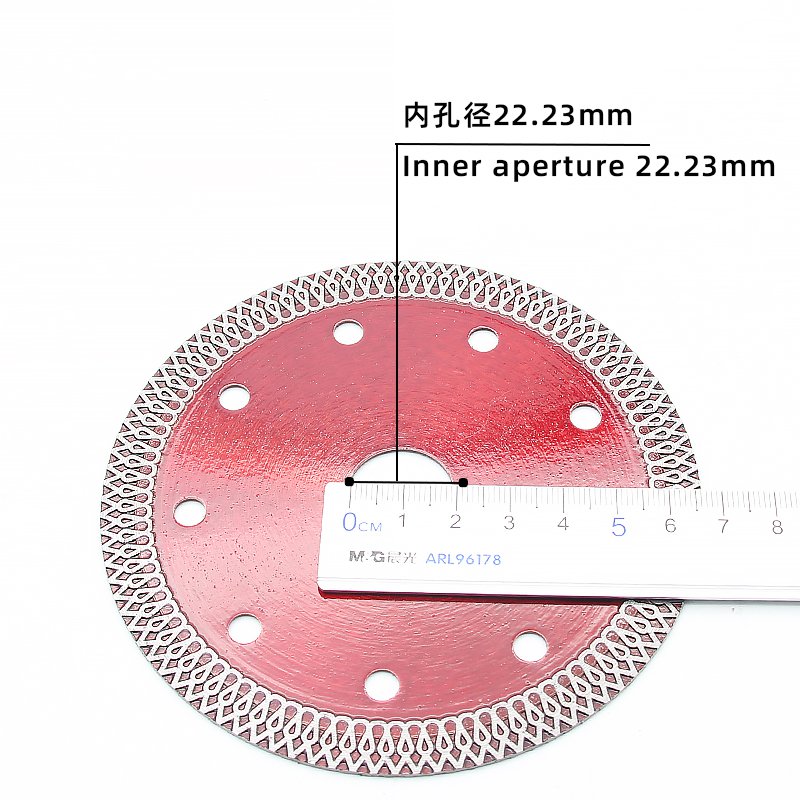

• Bore: 22.23mm

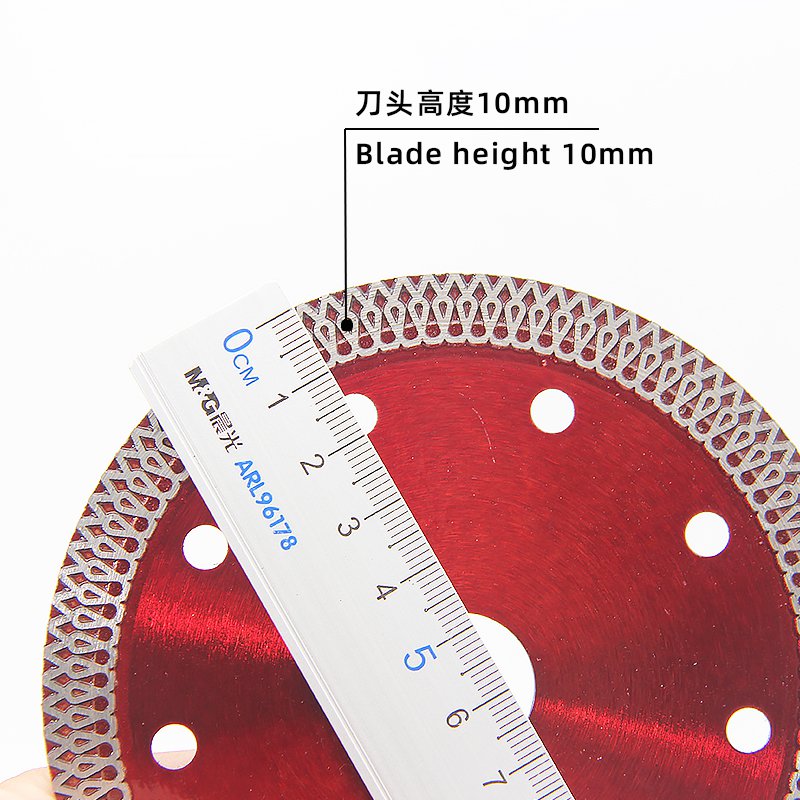

• Segment height: 10mm

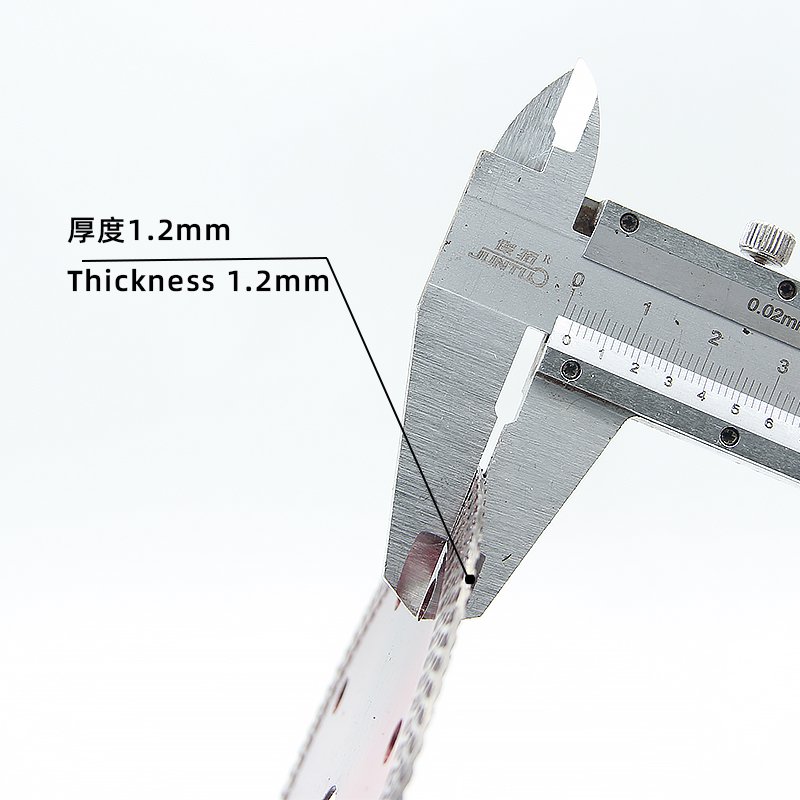

• Thickness: 1.2mm
• Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.

The dimensional starting points are 115mm for diameter and 22.23mm for the bore. Check flange contact, guard clearance and rotation direction during sample setup.

Cutting method and material

Listed use: ceramics, tiles, rock slabs, microcrystalline stone cutting.. Confirm the rim design against the material, machine power, cutting method and required finish before placing a volume order.

Alternative sizes and rim styles are listed under ceramic and tile cutting.

How this reference differs

This 115mm transparent-red tile blade is a separate size from the 105mm and 110mm coloured variants. Confirm guard clearance and bore fit before comparing finishes. Review the transparent coating after the blade dimensions and sample result have been accepted.

Ordering and private-label details

For an OEM quotation, provide the machine model, RPM, material, cutting depth, wet or dry method, quantity and destination. Add artwork and packaging instructions for a private-label order.

Evaluating the first sample

Approve the specification from repeatable test results on the buyer’s material. Keep the guard installed, stay within the speed rating and remove a damaged blade from service.

Send a product enquiry and include reference #2784 with the machine and material details.
