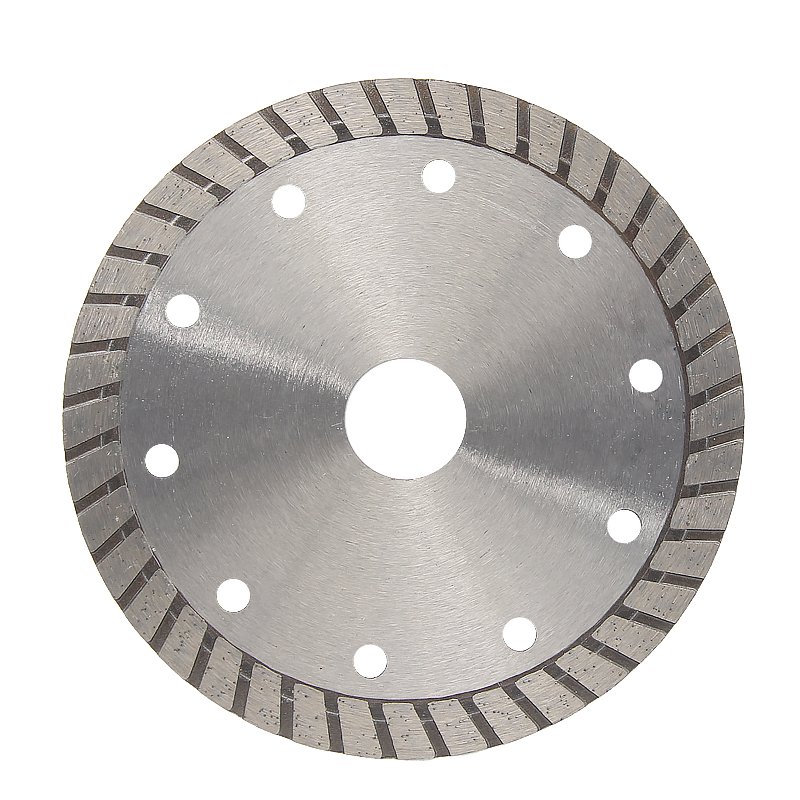

125mm Corrugated Stone Blade with 1.5mm Thickness

Updated: 2026-10-08

This page records the working specification for the 125mm Corrugated Stone Blade with 1.5mm Thickness. It is intended as a comparison point for stone cutting enquiries involving granite, marble, sandstone or the stone named in the enquiry.

Product reference: Quote catalogue reference #2946 so the drawing and sample remain linked to this page.

Reference dimensions

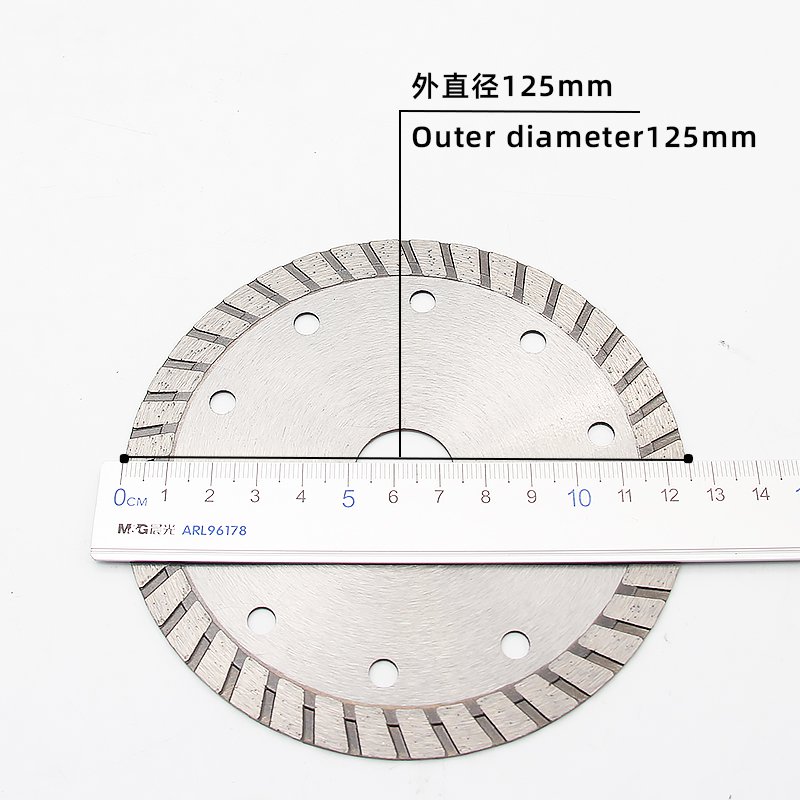

• Diameter: 125mm

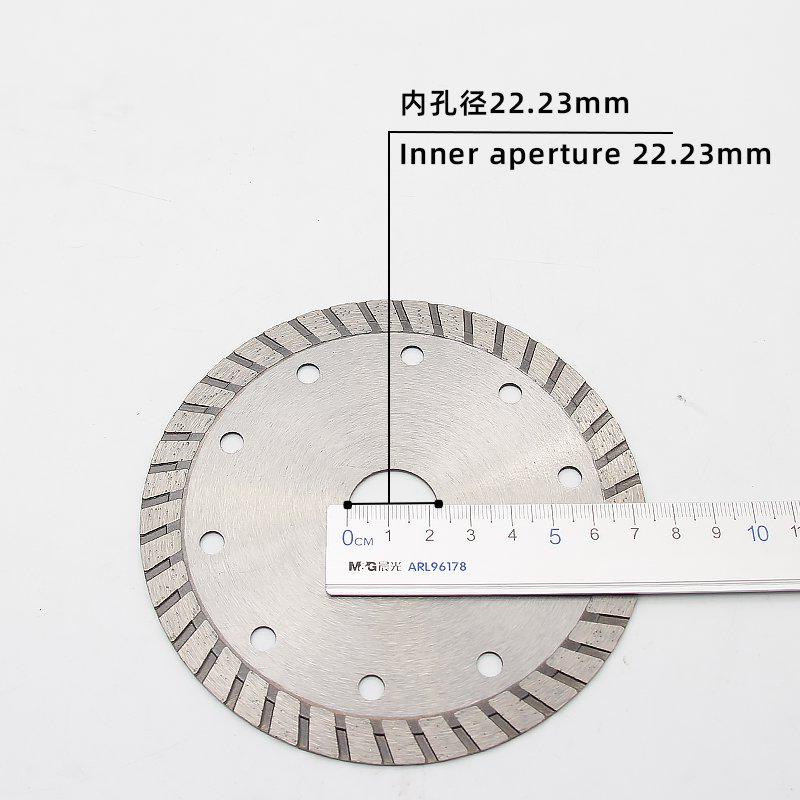

• Bore: 22.23mm
• Segment height: 10mm
• Thickness: 1.5mm
• Applications: granite, sandstone, rock slabs, marble cutting.

The stated diameter is 125mm, with bore information shown as 22.23mm. Measure the spindle and check the guard capacity before choosing a reduction ring or flange arrangement.

Selecting the application

Listed use: granite, sandstone, rock slabs, marble cutting.. The patterned rim should be evaluated for debris clearance, cooling and the required edge finish on the intended material.

Review the full stone cutting selection if the listed dimensions do not match the machine.

Preparing an OEM enquiry

A useful purchase enquiry includes arbor size, machine speed, material name, thickness, cooling method and target quantity. These details allow the factory to check the requested configuration before pricing.

How to validate the blade

Run the first sample on the intended material and record cut length, feed method, edge condition and rim wear. Stop the trial if vibration, cracks, runout or segment damage appears.

Send a product enquiry and include reference #2946 with the machine and material details.
