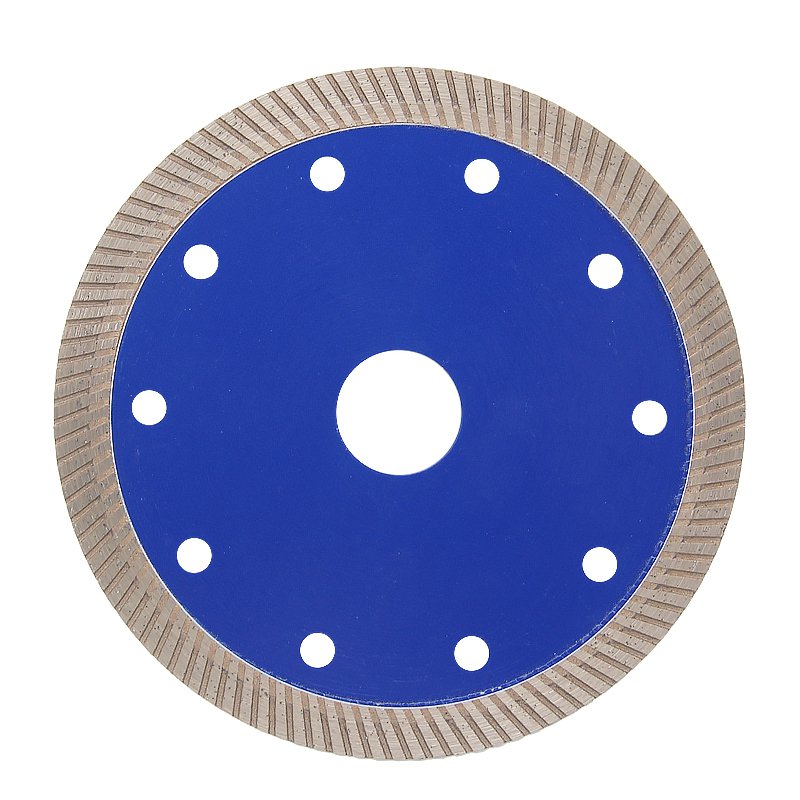

125mm Small Ripple Tile Blade with 10mm Segment

Updated: 2026-10-08

The 125mm Small Ripple Tile Blade with 10mm Segment is listed for ceramic and tile cutting. Its suitability depends on the workpiece and machine setup, so the diameter marking should be checked together with edge finish, tile hardness and chipping tolerance.

Product reference: For follow-up questions, identify the blade as catalogue #3064.

Product specification

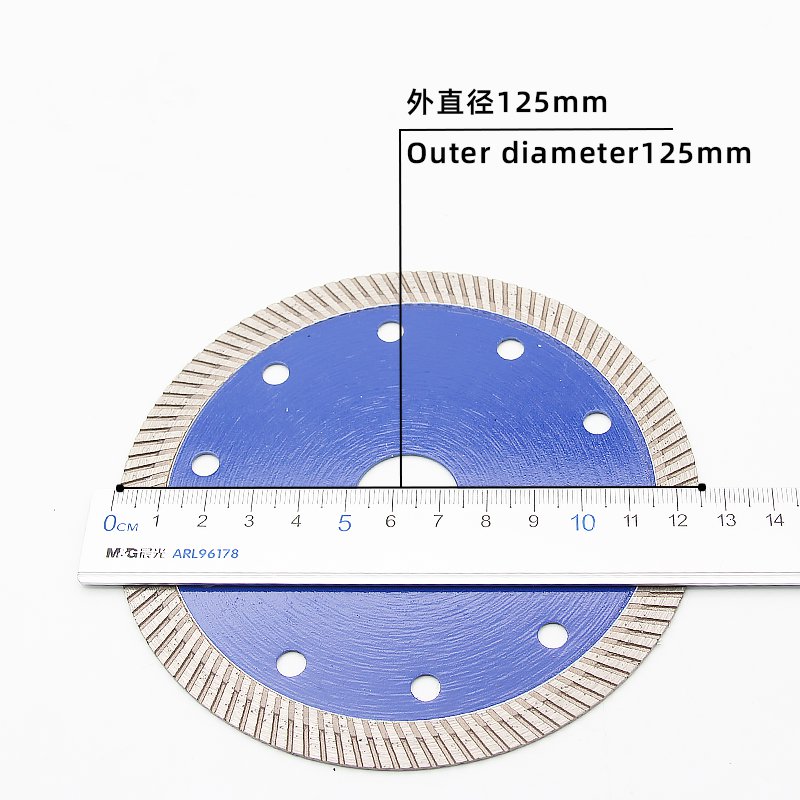

• Diameter: 125mm

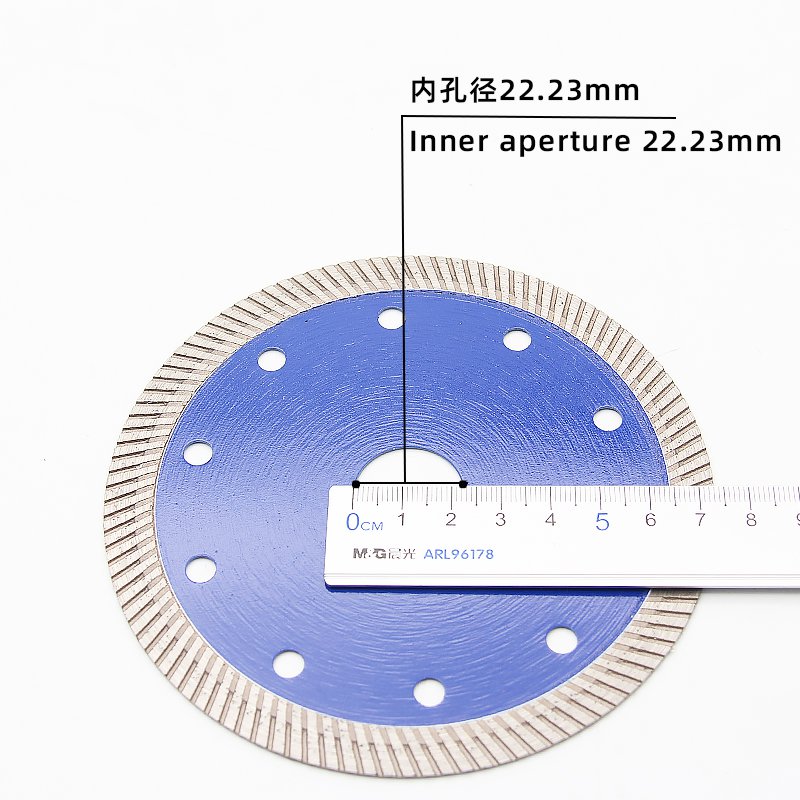

• Bore: 22.23mm

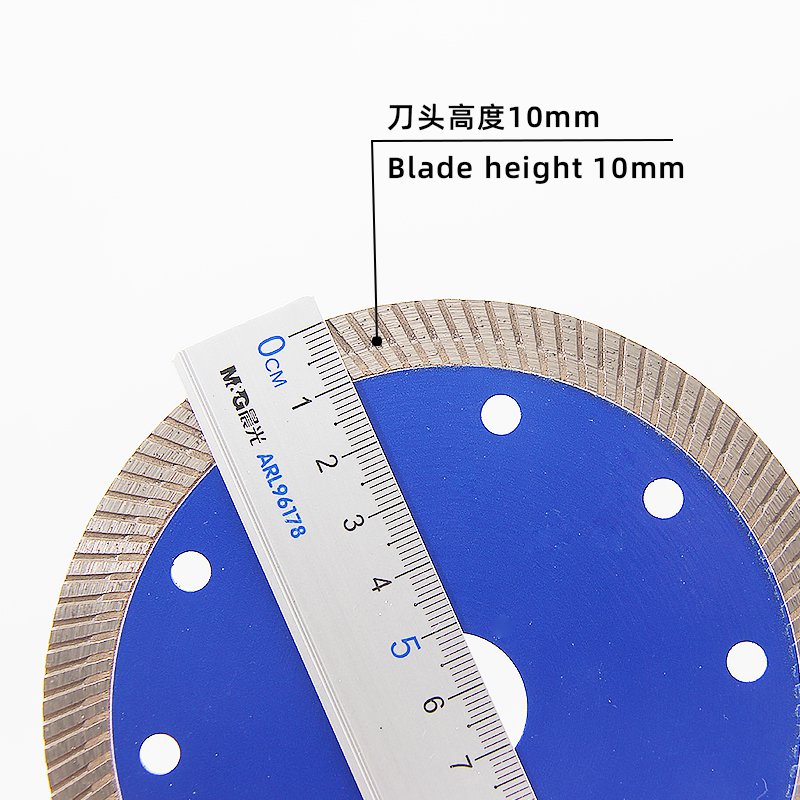

• Segment height: 10mm
• Thickness: 1.4mm
• Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.

The stated diameter is 125mm, with bore information shown as 22.23mm. Measure the spindle and check the guard capacity before choosing a reduction ring or flange arrangement.

Material and operating method

Listed use: ceramics, tiles, rock slabs, microcrystalline stone cutting.. The patterned rim should be evaluated for debris clearance, cooling and the required edge finish on the intended material.

See more ceramic and tile cutting product references for another cutting method or rim design.

Preparing an OEM enquiry

For an OEM quotation, provide the machine model, RPM, material, cutting depth, wet or dry method, quantity and destination. Add artwork and packaging instructions for a private-label order.

Evaluating the first sample

Use a small, representative batch for validation before a volume order. The acceptance record should cover cut quality, wear, machine load and any visible damage.

Send a product enquiry and include reference #3064 with the machine and material details.
