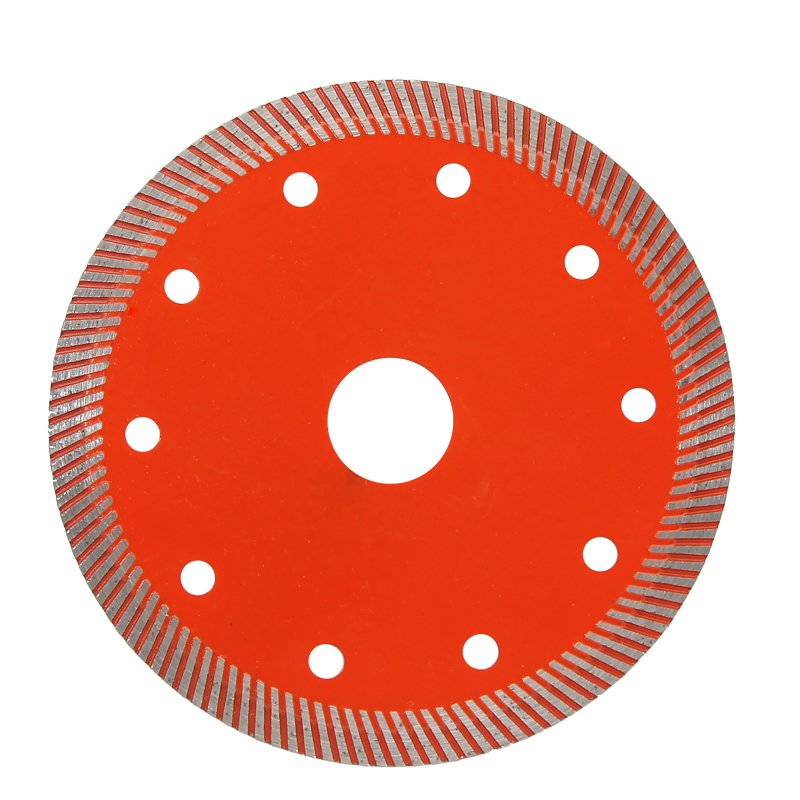

125mm Thin Corrugated Tile Blade with 10mm Segment

Updated: 2026-10-08

This 125mm Thin Corrugated Tile Blade with 10mm Segment provides one option within the ceramic and tile cutting range. It is most useful when the buyer can provide a sample material or clear details about edge finish, tile hardness and chipping tolerance.

Product reference: Keep reference #2847 on the enquiry, sample label and approval record.

Current catalogue specification

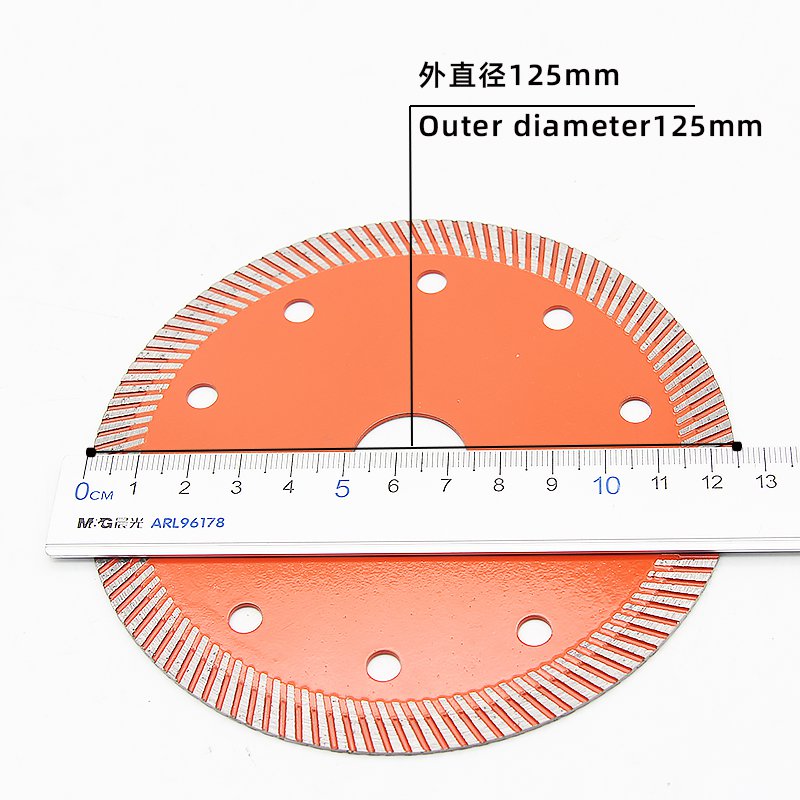

• Diameter: 125mm

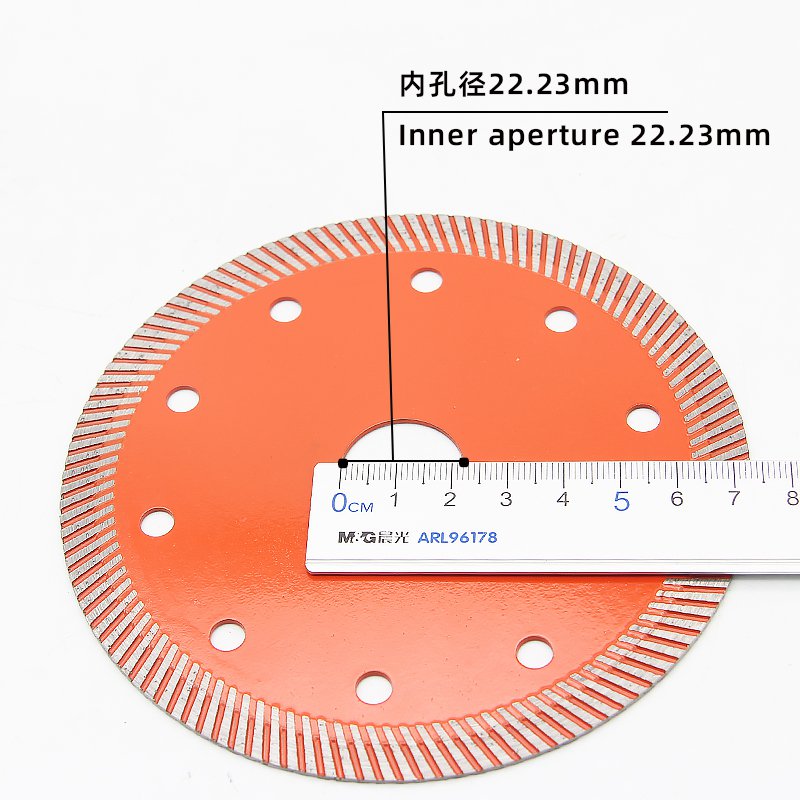

• Bore: 22.23mm

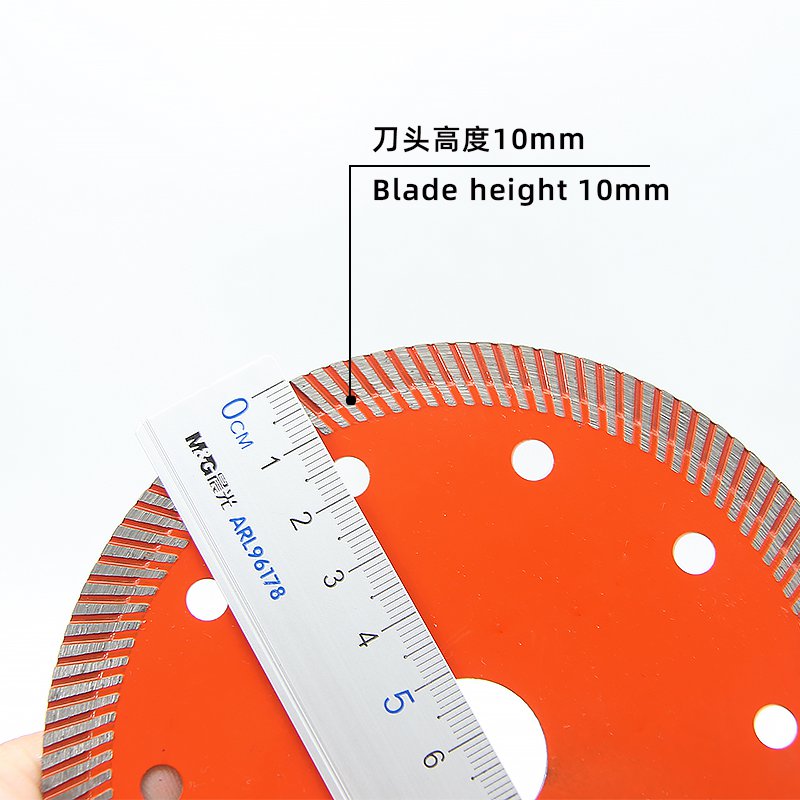

• Segment height: 10mm
• Thickness: 1.2mm
• Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.

Before fitting this design, confirm that the machine accepts 125mm and the stated 22.23mm bore. Do not enlarge the arbor hole or operate without the intended guard.

Application review

Listed use: ceramics, tiles, rock slabs, microcrystalline stone cutting.. The patterned rim should be evaluated for debris clearance, cooling and the required edge finish on the intended material.

Use the ceramic and tile cutting product list to compare adjacent specifications.

Building the purchase specification

Before pricing, confirm the technical drawing and the application limits. Order quantity, destination, packaging style and private-label files complete the commercial enquiry.

Controlled trial procedure

Inspect the blade before mounting and carry out a short no-load check in a safe area. During cutting, follow the machine instructions and stop when sound, resistance or vibration changes.

Send a product enquiry and include reference #2847 with the machine and material details.
