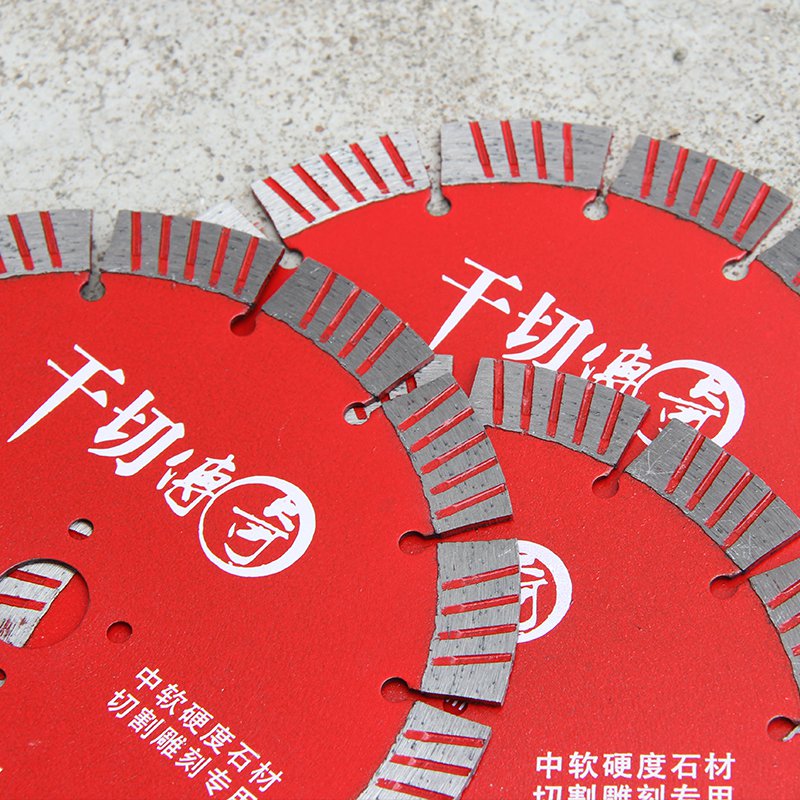

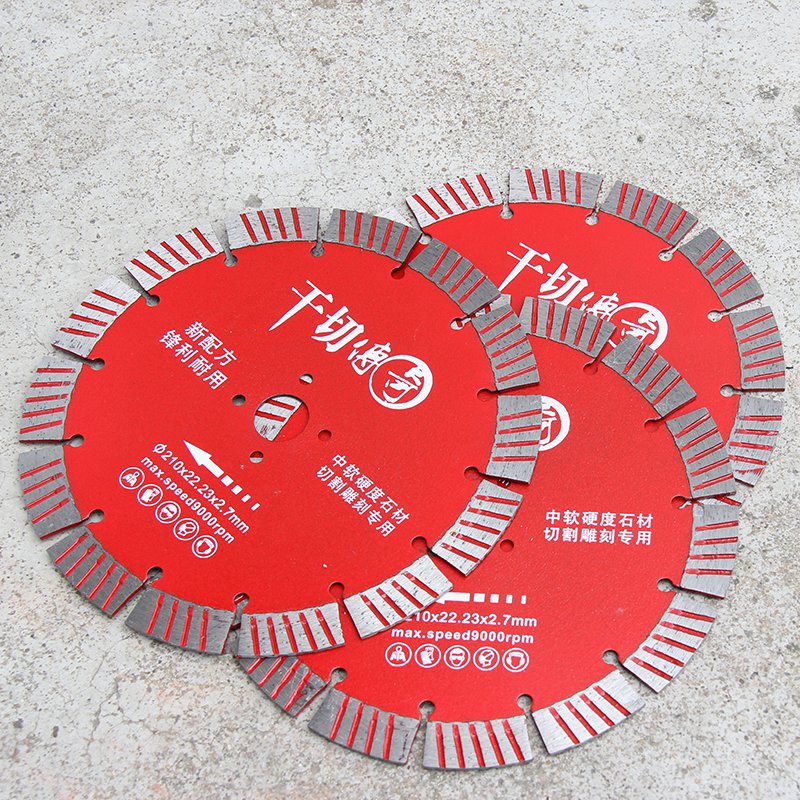

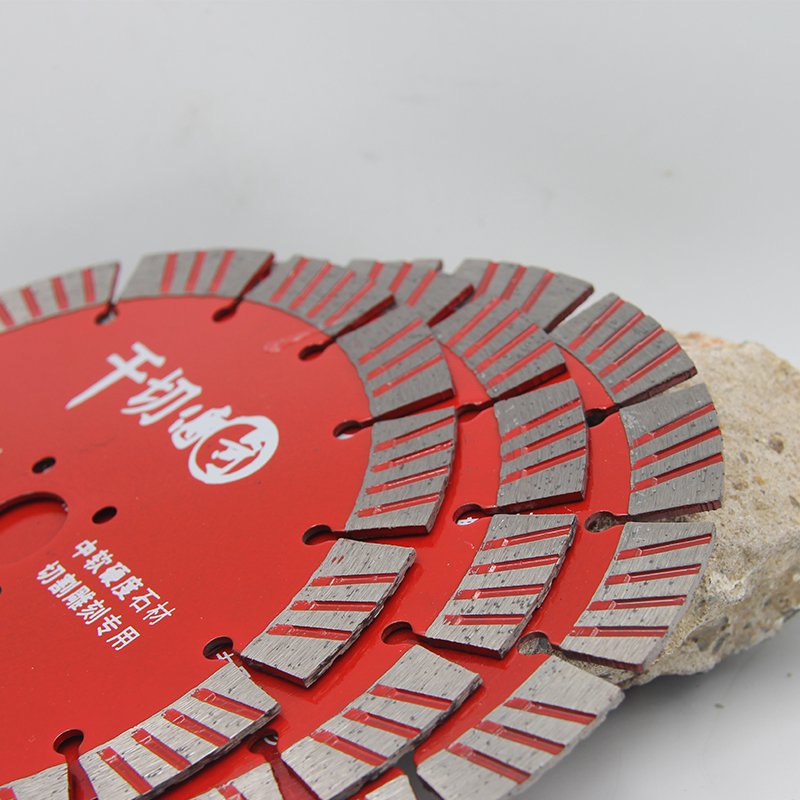

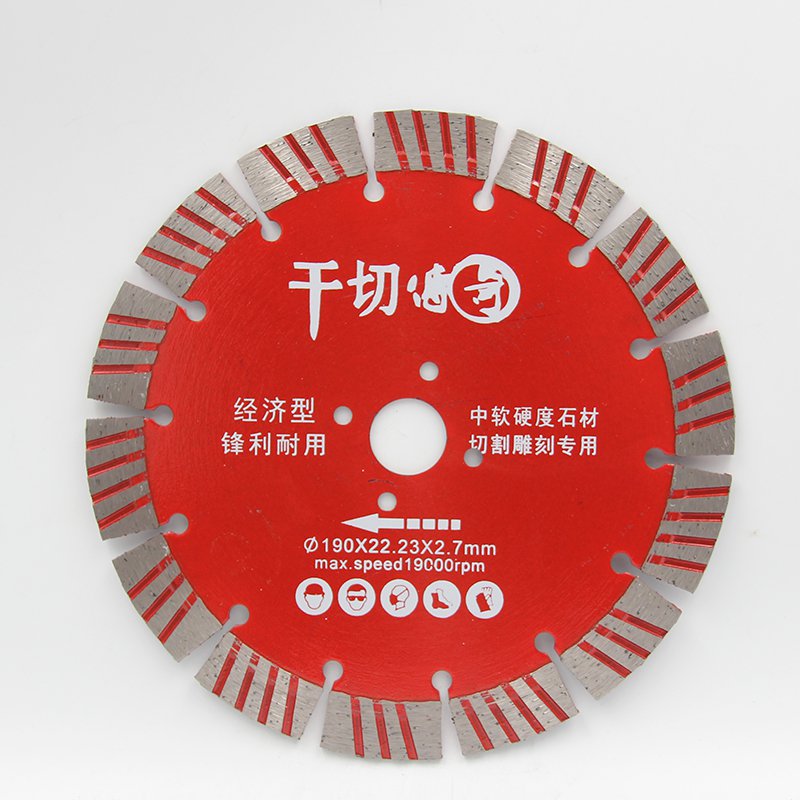

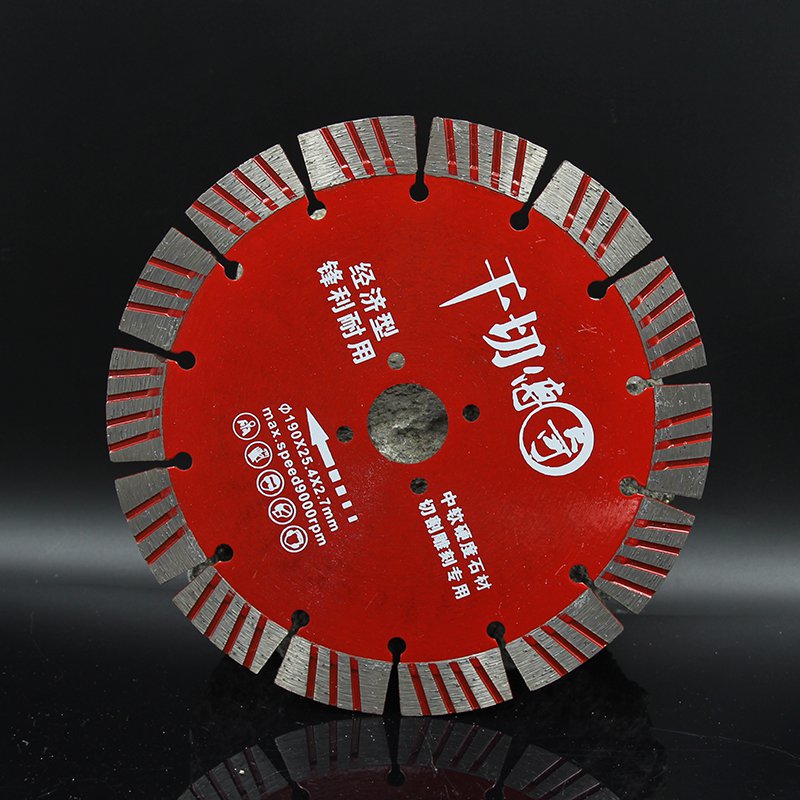

190–230mm Dry Cutting Wall Chasing Diamond Blades

Updated: 2026-10-08

Use the 190–230mm Dry Cutting Wall Chasing Diamond Blades specification when comparing a sample for wall chasing and construction cutting. The practical selection question is whether its rim, dimensions and operating method suit brick, masonry, concrete or the material stated for the project.

Product reference: Quote catalogue reference #2628 so the drawing and sample remain linked to this page.

Dimensions and listed application

• Diameter: 190mm-210mm-230mm
• Bore: 22.23/25.4mm
• Segment height: 17mm
• Thickness: 2.6/2.7/2.8mm
• Applications: Wall channel cutting, red brick concrete stone type

At 190mm-210mm-230mm diameter and 22.23/25.4mm bore specification, machine compatibility must be confirmed from the equipment plate. A similar outside diameter does not make a different arbor safe to use.

Selecting the application

Listed use: Wall channel cutting, red brick concrete stone type. For approved dry cutting, use controlled passes and cooling intervals instead of forcing the blade through the workpiece.

The wall chasing and construction cutting category contains other dimensions for comparison.

Information for quotation

The OEM brief should identify the machine, spindle, RPM, material and desired balance between speed, finish and service life. Commercial terms should refer to the approved sample or drawing.

Sample acceptance checks

Run the first sample on the intended material and record cut length, feed method, edge condition and rim wear. Stop the trial if vibration, cracks, runout or segment damage appears.

Send a product enquiry and include reference #2628 with the machine and material details.
