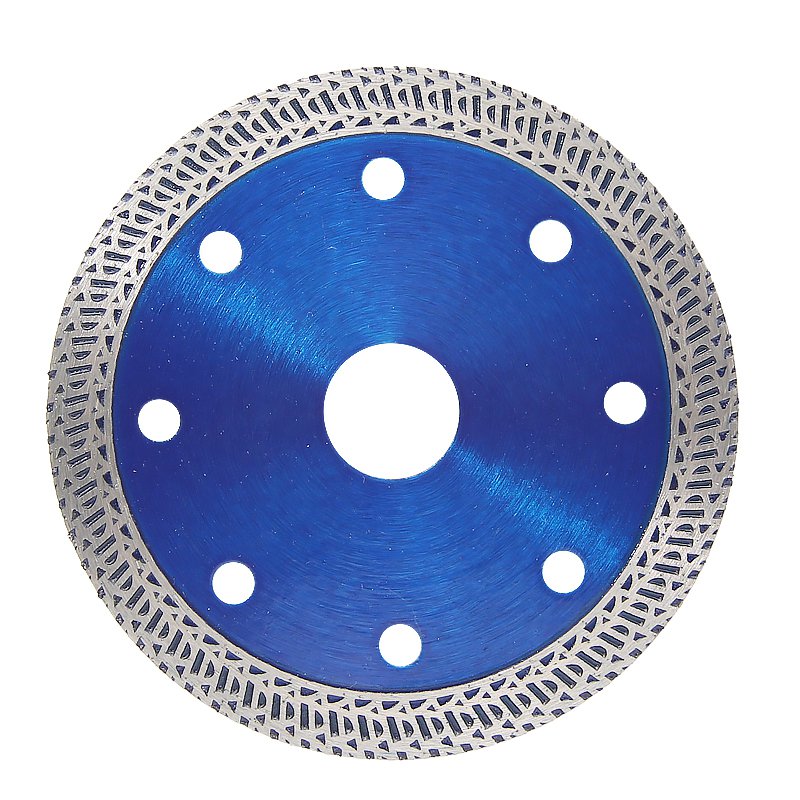

105mm K-Wave Ceramic Tile Blade with Transparent Blue

Updated: 2026-10-08

The 105mm K-Wave Ceramic Tile Blade with Transparent Blue covers a specific ceramic and tile cutting configuration. Machine speed, arbor fit and the condition of the workpiece can change the result even when the nominal diameter is correct.

Product reference: Quote catalogue reference #3075 so the drawing and sample remain linked to this page.

Working specification

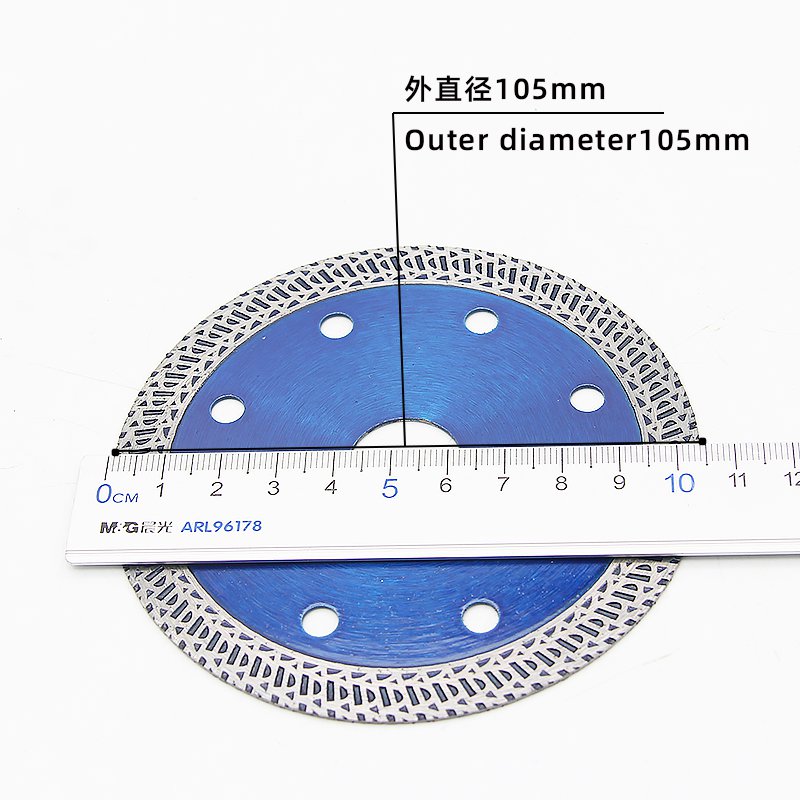

• Diameter: 105mm

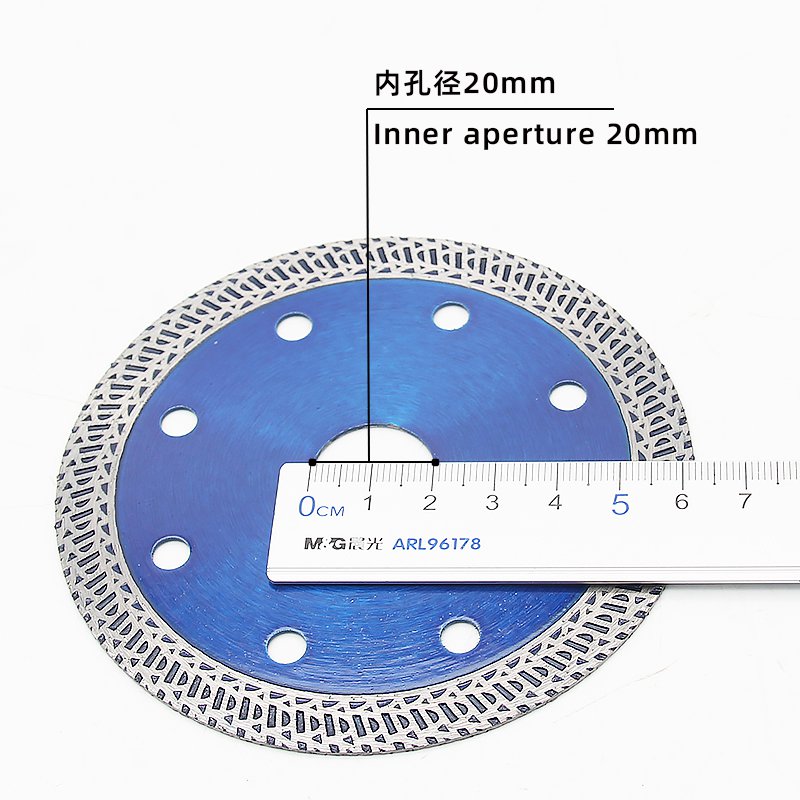

• Bore: 20mm

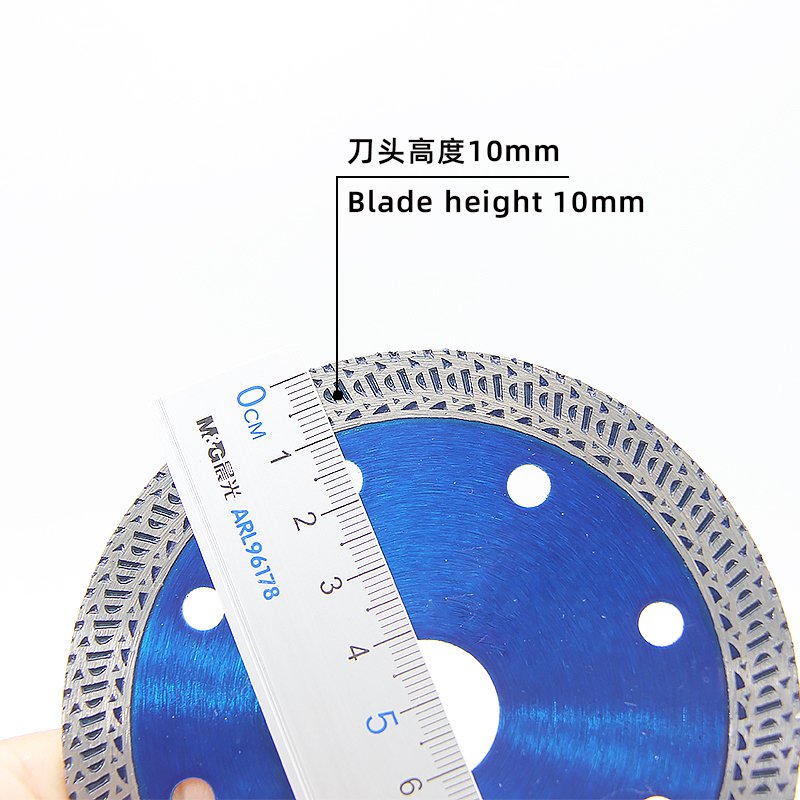

• Segment height: 10mm

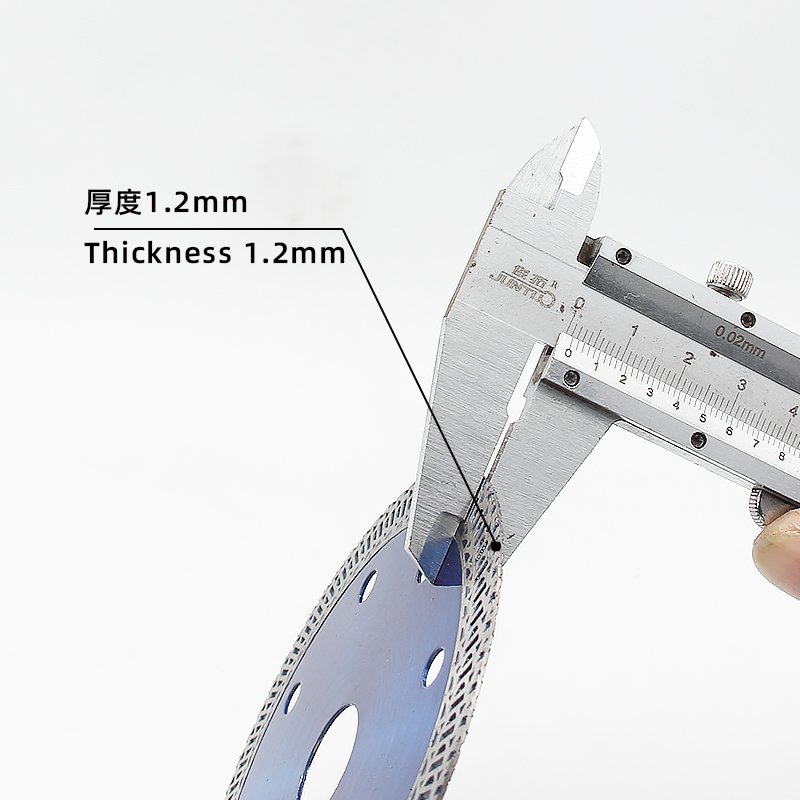

• Thickness: 1.2mm
• Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.

The dimensional starting points are 105mm for diameter and 20mm for the bore. Check flange contact, guard clearance and rotation direction during sample setup.

Selecting the application

Listed use: ceramics, tiles, rock slabs, microcrystalline stone cutting.. The patterned rim should be evaluated for debris clearance, cooling and the required edge finish on the intended material.

Browse the related ceramic and tile cutting range when another rim pattern or size may be more suitable.

Ordering and private-label details

When requesting a sample, state how the blade will be mounted and what result will be measured. For production orders, also provide marking, packaging, shipping destination and document requirements.

Inspection during a cutting trial

Run the first sample on the intended material and record cut length, feed method, edge condition and rim wear. Stop the trial if vibration, cracks, runout or segment damage appears.

Send a product enquiry and include reference #3075 with the machine and material details.
