105mm Y-Wave Ultra-Thin Ceramic Tile Blade

Updated: 2026-10-08

The 105mm Y-Wave Ultra-Thin Ceramic Tile Blade is an OEM-ready blade reference for ceramic and tile cutting. Before quotation, the buyer and manufacturer should agree on edge finish, tile hardness and chipping tolerance, the machine interface and the test method.

Product reference: Quote catalogue reference #3077 so the drawing and sample remain linked to this page.

Working specification

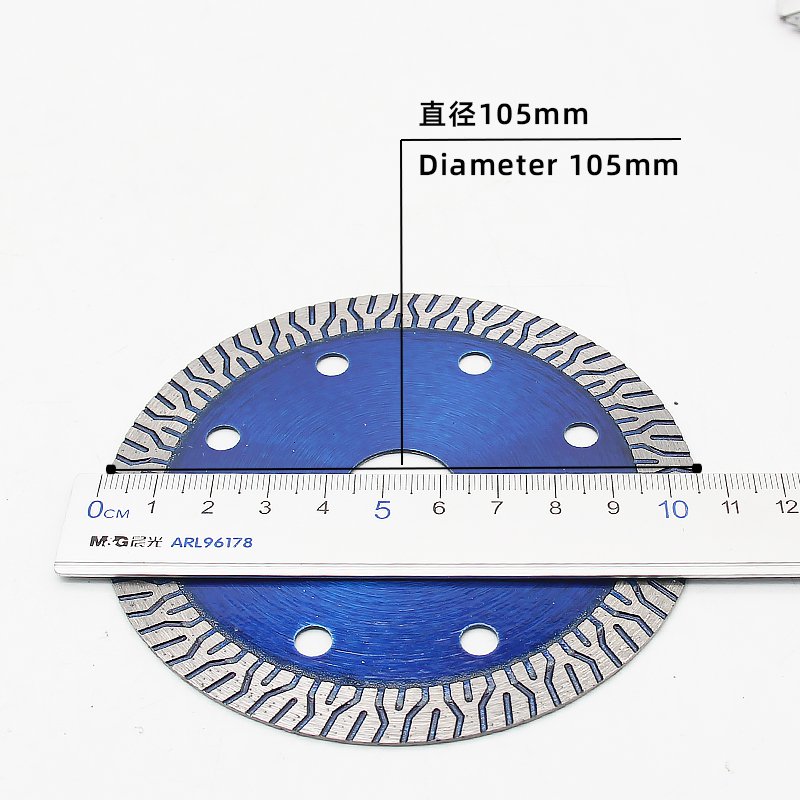

• Diameter: 105mm

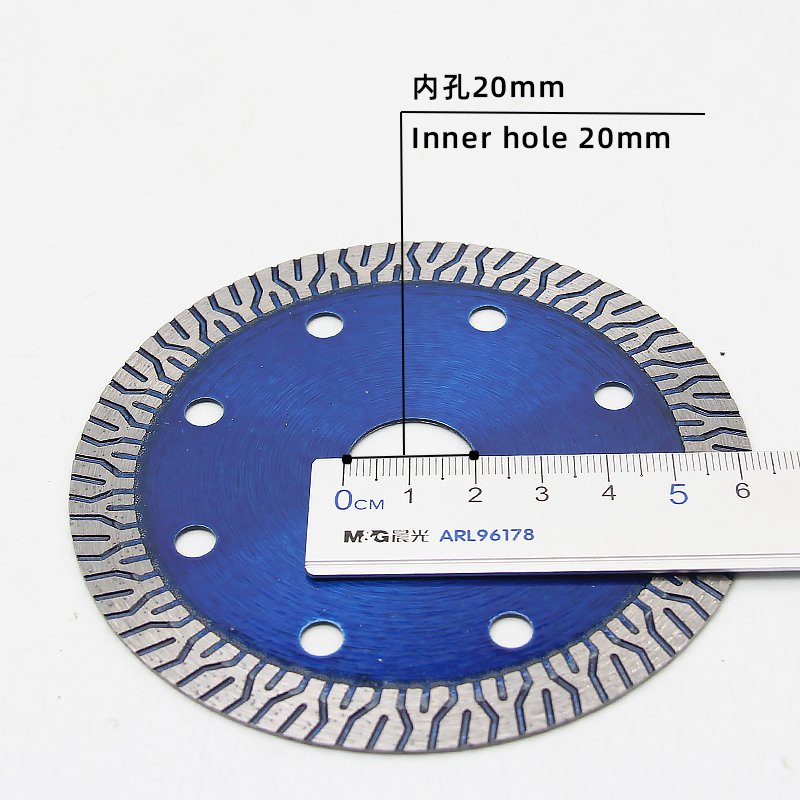

• Bore: 20mm

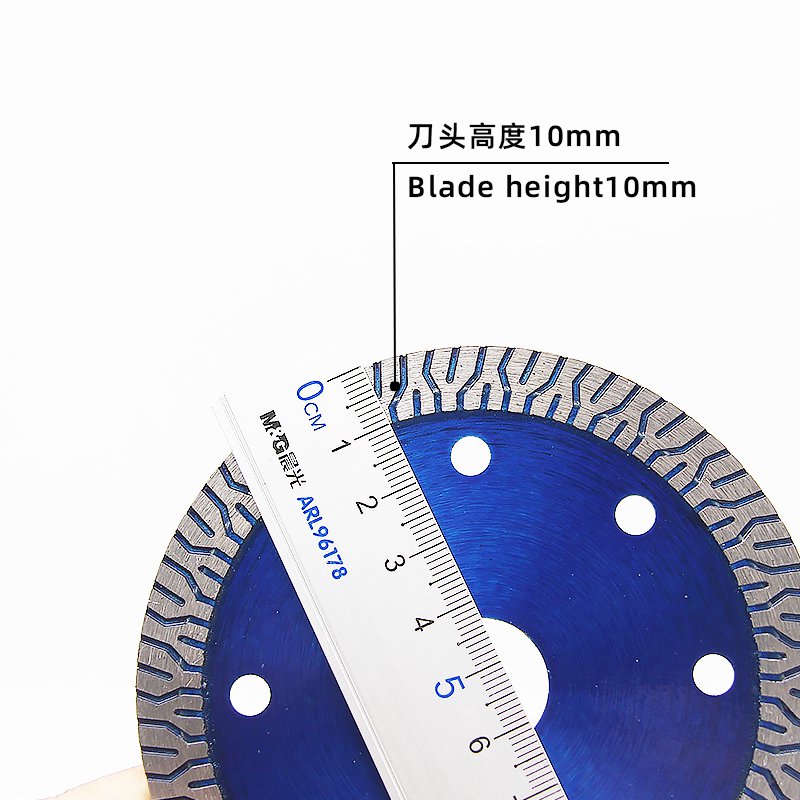

• Segment height: 10mm
• Thickness: 1.2mm
• Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.

Use the machine manual to verify the 105mm diameter and 20mm bore combination. Spindle play or dirty flanges can distort a cutting test and should be corrected first.

Selecting the application

Listed use: ceramics, tiles, rock slabs, microcrystalline stone cutting.. The patterned rim should be evaluated for debris clearance, cooling and the required edge finish on the intended material.

Browse the related ceramic and tile cutting range when another rim pattern or size may be more suitable.

Sample and production enquiry

To compare quotations fairly, send every supplier the same material, machine and output requirements. Shandong Huada Jinke New Materials Co., Ltd. can then confirm the drawing, sample quantity and schedule.

Before a volume order

Run the first sample on the intended material and record cut length, feed method, edge condition and rim wear. Stop the trial if vibration, cracks, runout or segment damage appears.

Send a product enquiry and include reference #3077 with the machine and material details.
