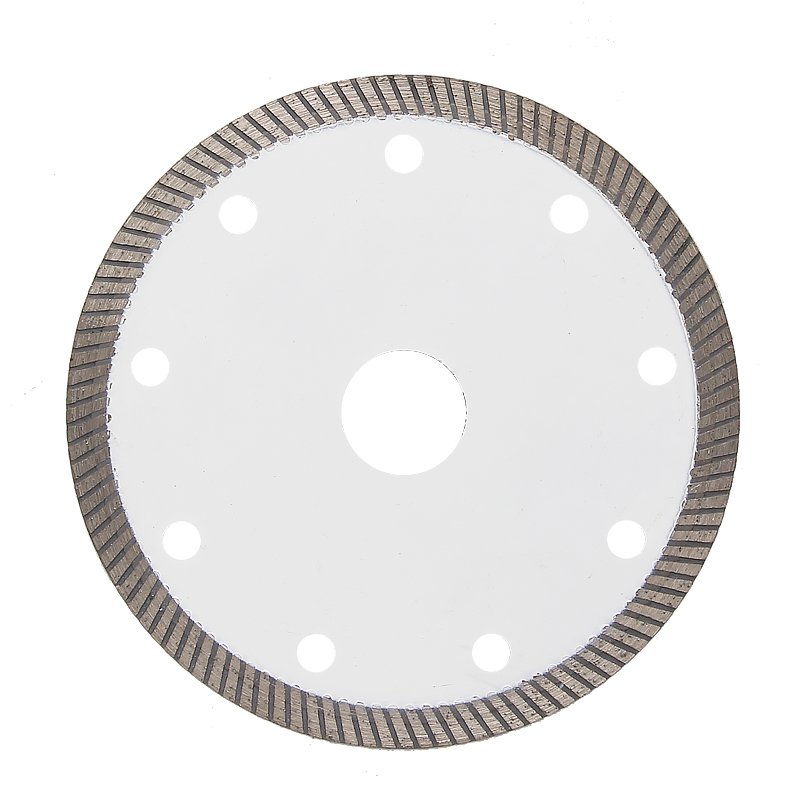

110mm Small Corrugated Tile Blade with 7mm Segment

Updated: 2026-10-08

This 110mm Small Corrugated Tile Blade with 7mm Segment provides one option within the ceramic and tile cutting range. It is most useful when the buyer can provide a sample material or clear details about edge finish, tile hardness and chipping tolerance.

Product reference: Catalogue #2711 identifies this configuration during sampling and quotation.

Specification supplied for review

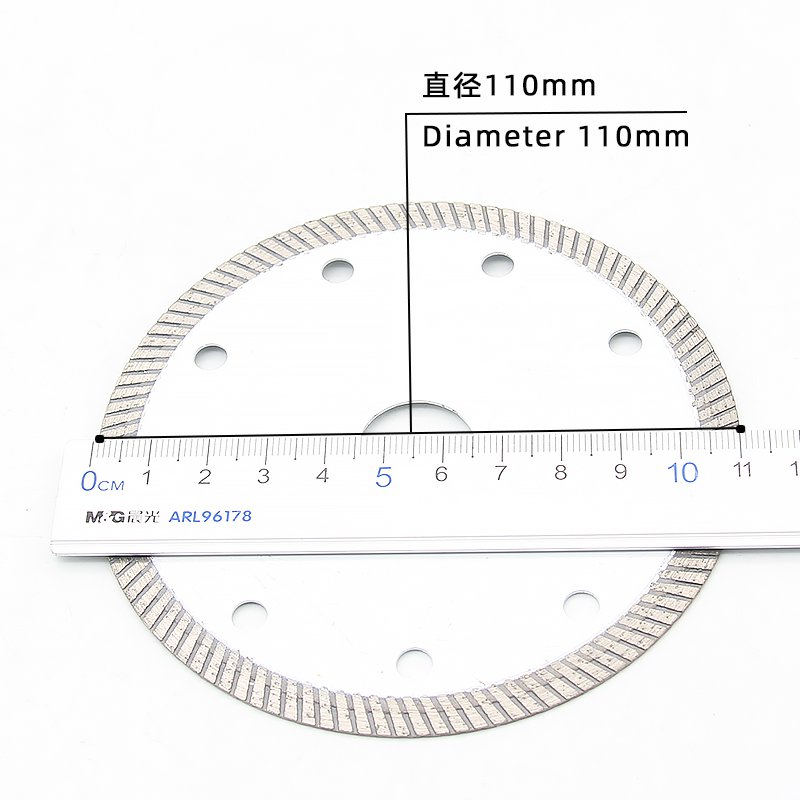

• Diameter: 110mm

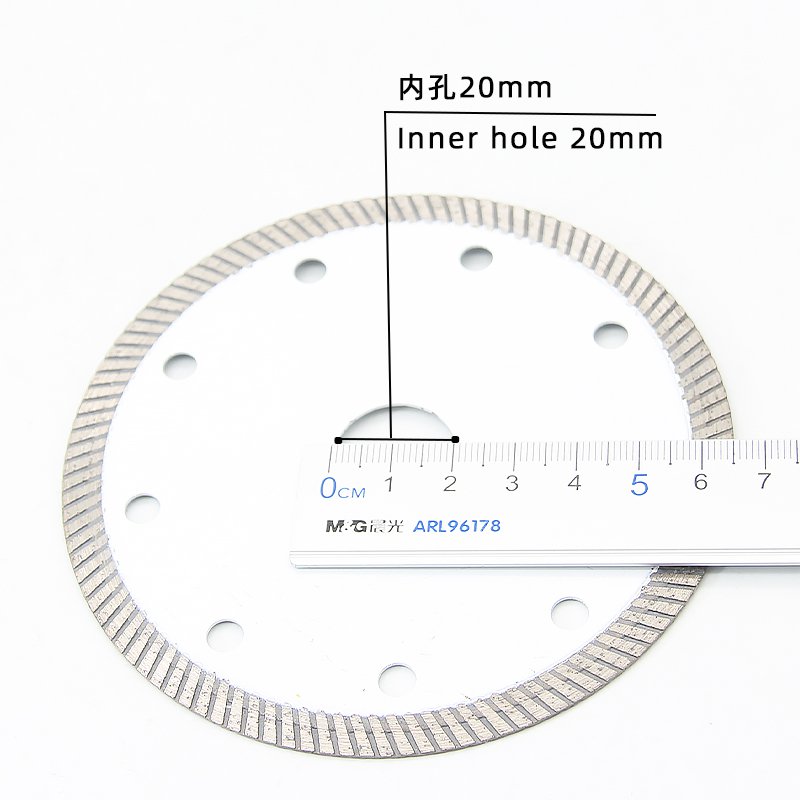

• Bore: 20mm

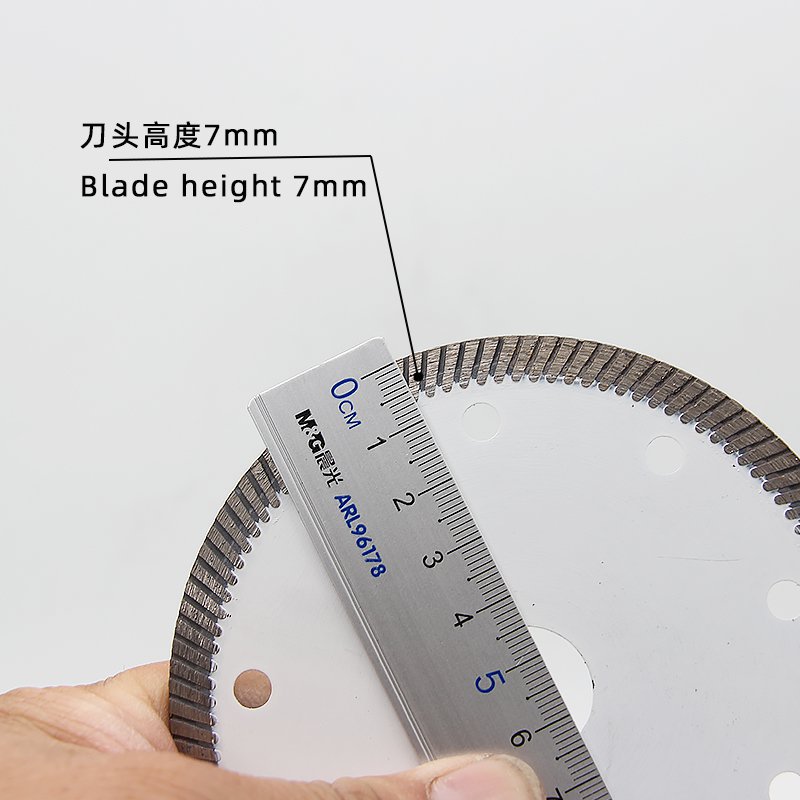

• Segment height: 7mm

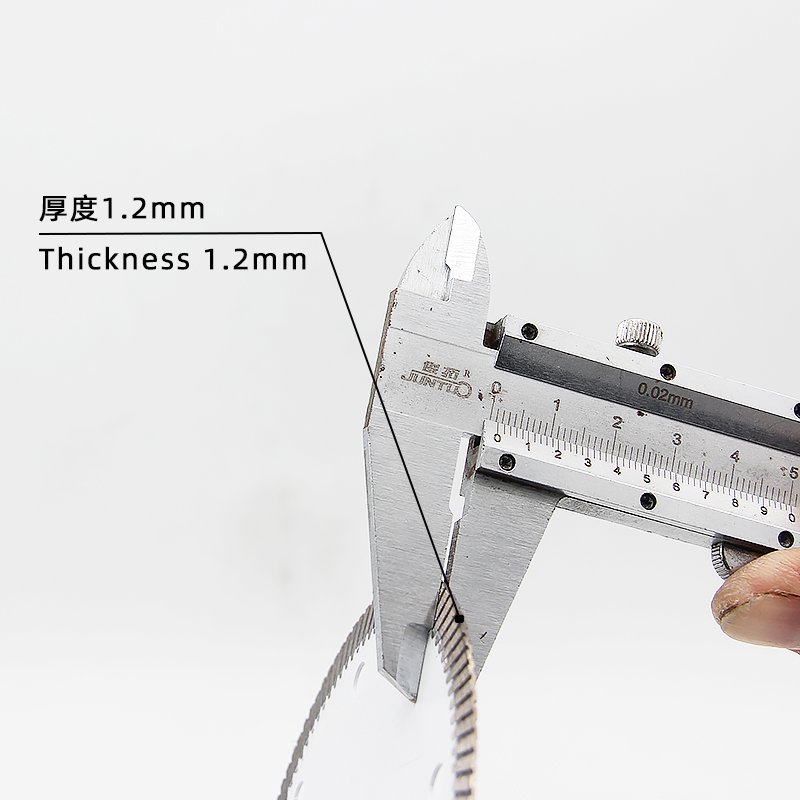

• Thickness: 1.2mm
• Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.

A quotation based only on 110mm is incomplete. Confirm the 20mm bore, maximum speed, flange arrangement and available guard clearance as one machine-fit check.

What this design should be checked against

Listed use: ceramics, tiles, rock slabs, microcrystalline stone cutting.. The patterned rim should be evaluated for debris clearance, cooling and the required edge finish on the intended material.

Compare this entry with other ceramic and tile cutting blades before selecting a sample.

OEM drawing and commercial details

Before pricing, confirm the technical drawing and the application limits. Order quantity, destination, packaging style and private-label files complete the commercial enquiry.

Controlled trial procedure

A controlled sample test is more useful than a general claim. Keep material, operator, cooling and feed conditions consistent, and photograph the edge and wear pattern after the test.

Send a product enquiry and include reference #2711 with the machine and material details.
