110mm Yellow Small Corrugated Tile Blade

Updated: 2026-10-08

The 110mm Yellow Small Corrugated Tile Blade is listed for ceramic and tile cutting. Its suitability depends on the workpiece and machine setup, so the diameter marking should be checked together with edge finish, tile hardness and chipping tolerance.

Product reference: The traceable catalogue reference for this design is #2720.

Specification supplied for review

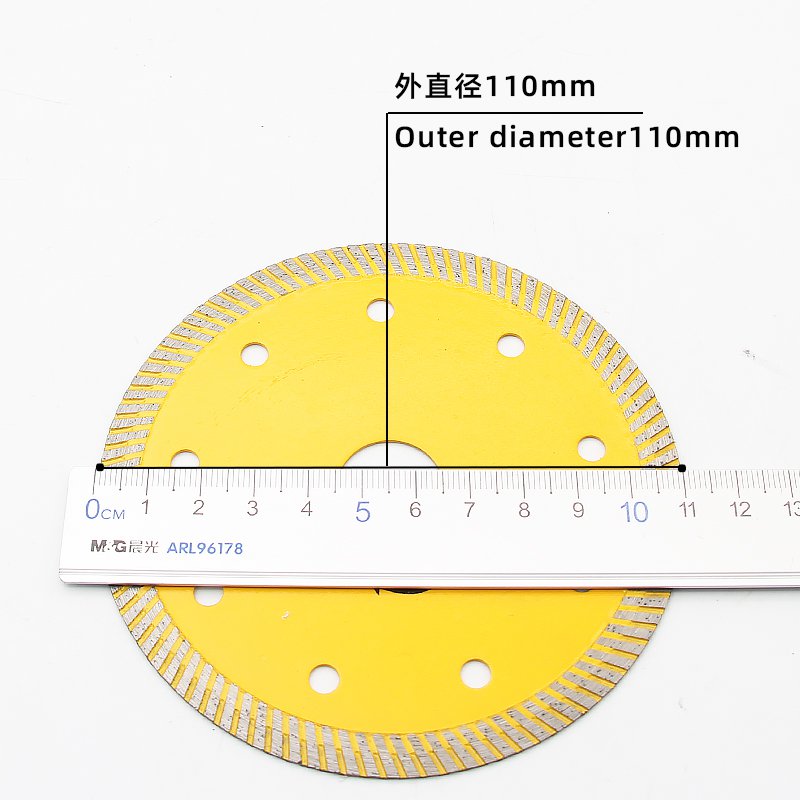

• Diameter: 110mm

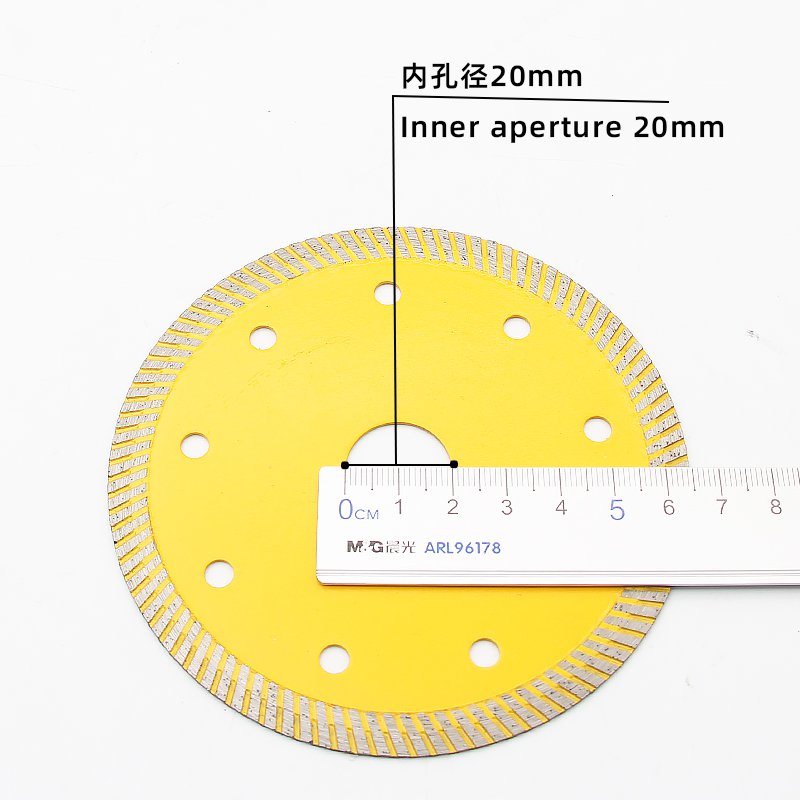

• Bore: 20mm

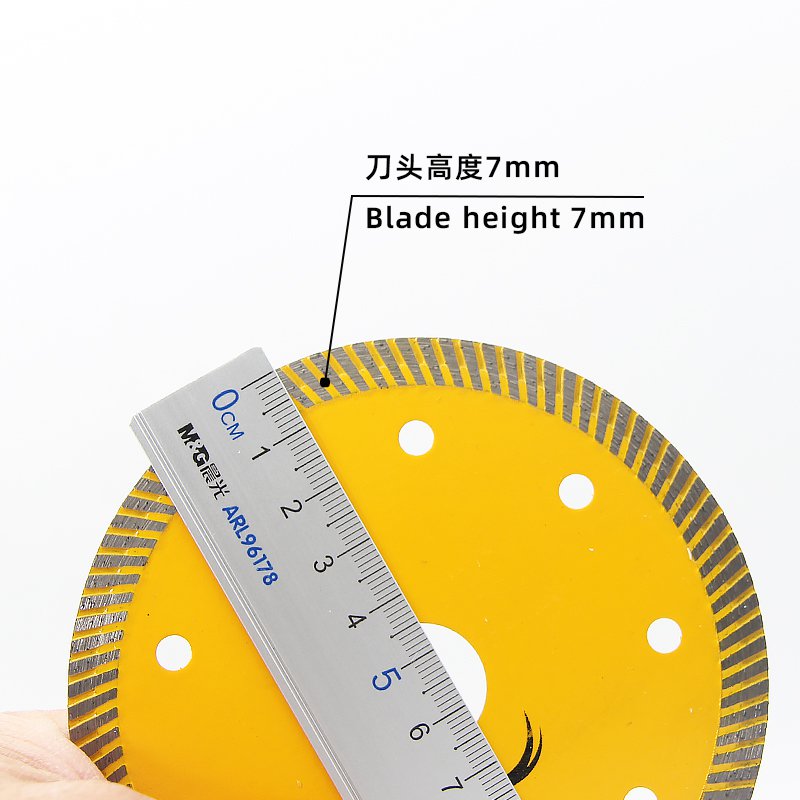

• Segment height: 7mm

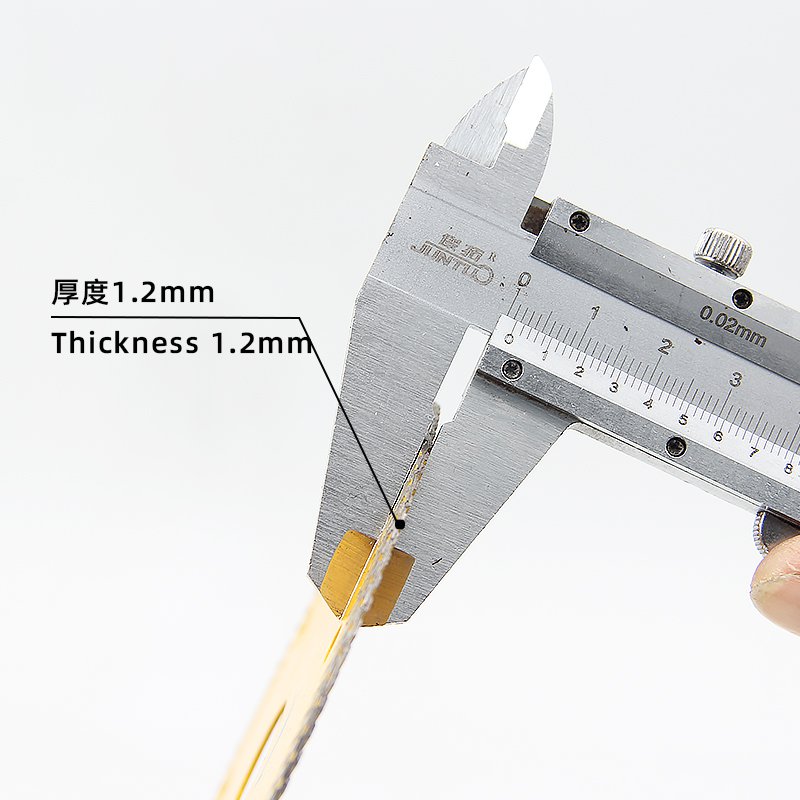

• Thickness: 1.2mm
• Features: Wet and dry with silent cutting chute
• Applications: ceramics, tiles, rock slabs, microcrystalline stone cutting.

The catalogue dimensions, 110mm and 20mm, need to be read with the machine RPM and flange data. Record those values on the purchase specification.

Cutting method and material

Listed use: ceramics, tiles, rock slabs, microcrystalline stone cutting.. The patterned rim should be evaluated for debris clearance, cooling and the required edge finish on the intended material.

Compare this entry with other ceramic and tile cutting blades before selecting a sample.

How this reference differs

The yellow finish identifies this small-corrugated 110mm catalogue variant; colour itself does not determine performance. Compare its rim pattern, thickness and segment height with the tile sample. Keep any OEM coating request separate from the dimensional and material specification. For this small-corrugated pattern, photograph the rim before and after the trial and note the tile thickness. That record makes it easier to compare the yellow variant with mesh-rim or K-wave alternatives.

Data needed before pricing

For an OEM quotation, provide the machine model, RPM, material, cutting depth, wet or dry method, quantity and destination. Add artwork and packaging instructions for a private-label order.

Evaluating the first sample

Approve the specification from repeatable test results on the buyer’s material. Keep the guard installed, stay within the speed rating and remove a damaged blade from service.

Send a product enquiry and include reference #2720 with the machine and material details.
