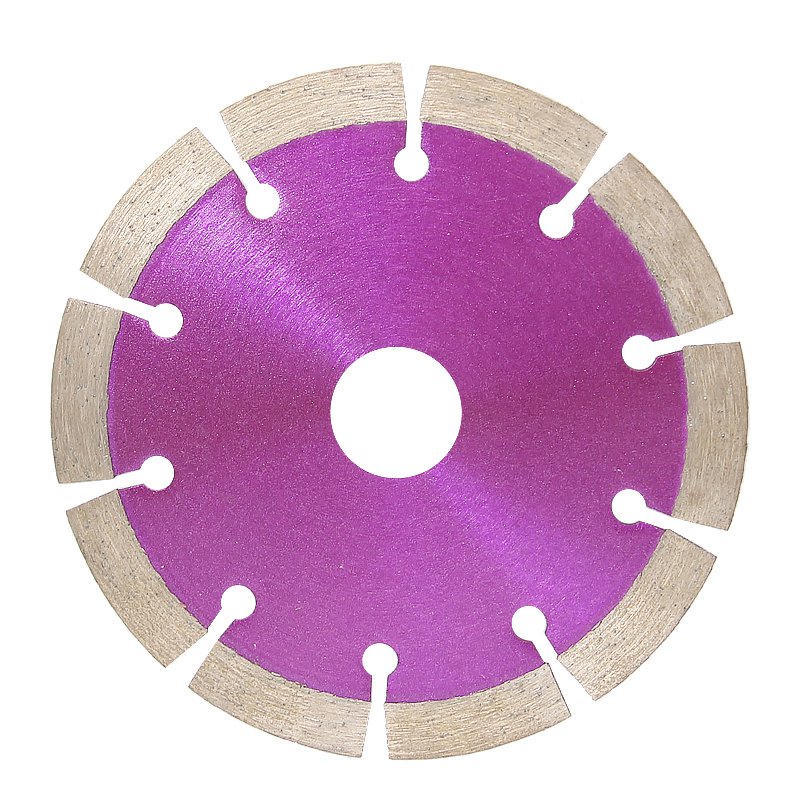

125mm 10-Tooth Dry Cutting Diamond Blade

Updated: 2026-10-08

Use the 125mm 10-Tooth Dry Cutting Diamond Blade specification when comparing a sample for stone cutting. The practical selection question is whether its rim, dimensions and operating method suit granite, marble, sandstone or the stone named in the enquiry.

Product reference: Catalogue #2964 identifies this configuration during sampling and quotation.

Reference dimensions

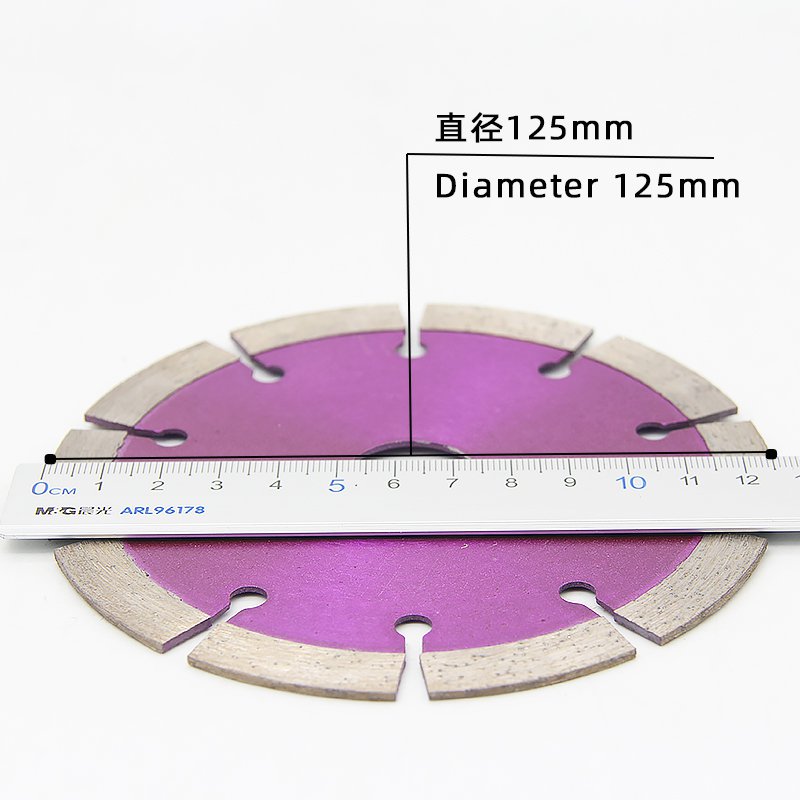

• Diameter: 125mm

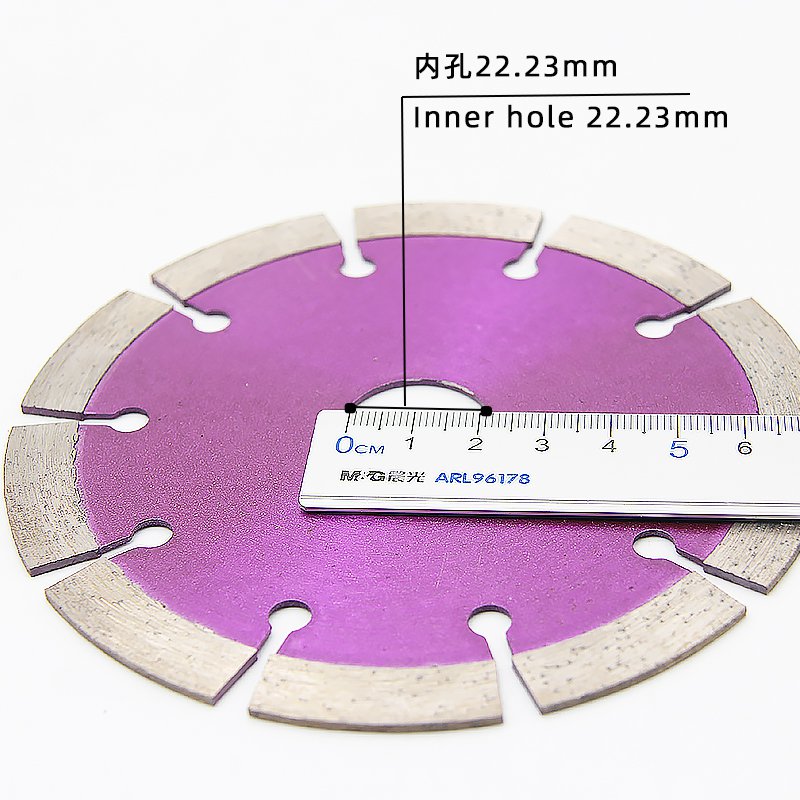

• Bore: 22.23mm

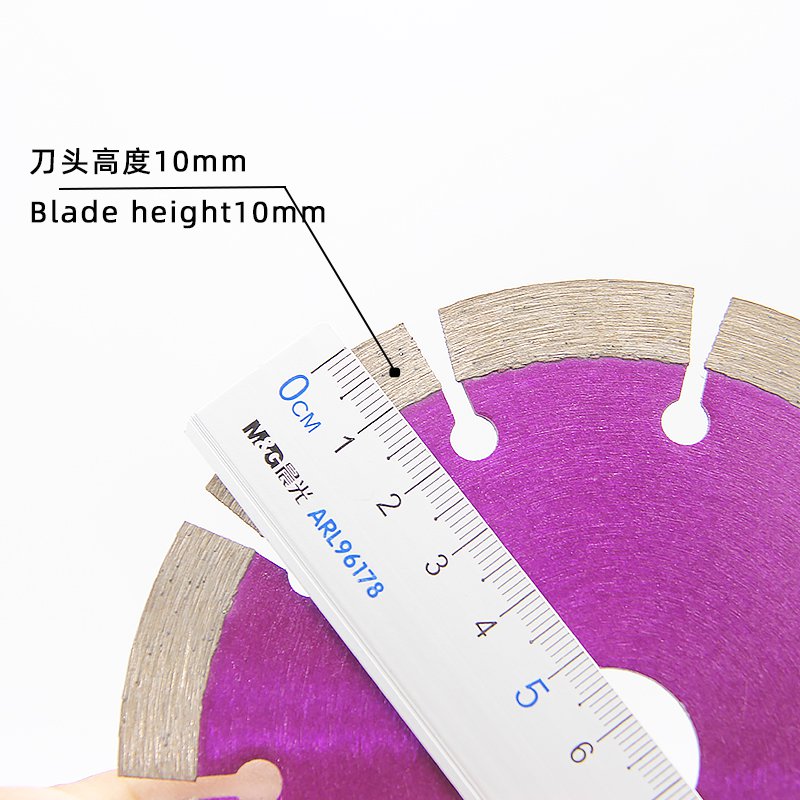

• Segment height: 10mm
• Thickness: 1.8mm
• Features: Wet and dry with silent cutting chute

The stated diameter is 125mm, with bore information shown as 22.23mm. Measure the spindle and check the guard capacity before choosing a reduction ring or flange arrangement.

What this design should be checked against

Listed use: the stated application. For approved dry cutting, use controlled passes and cooling intervals instead of forcing the blade through the workpiece.

Review the full stone cutting selection if the listed dimensions do not match the machine.

How this reference differs

This 125mm dry-cutting reference uses a 10-tooth layout. Tooth count is only one selection factor; segment shape, bond, material and speed still need confirmation. Compare continuous-rim options separately because debris clearance and edge behaviour differ.

Preparing an OEM enquiry

The OEM brief should identify the machine, spindle, RPM, material and desired balance between speed, finish and service life. Commercial terms should refer to the approved sample or drawing.

Sample acceptance checks

A controlled sample test is more useful than a general claim. Keep material, operator, cooling and feed conditions consistent, and photograph the edge and wear pattern after the test.

Send a product enquiry and include reference #2964 with the machine and material details.
