133mm Dry Cutting Stone Blade with 15mm Segment

Updated: 2026-10-08

This 133mm Dry Cutting Stone Blade with 15mm Segment provides one option within the stone cutting range. It is most useful when the buyer can provide a sample material or clear details about stone abrasiveness, slab thickness and required edge quality.

Product reference: For follow-up questions, identify the blade as catalogue #3071.

Product specification

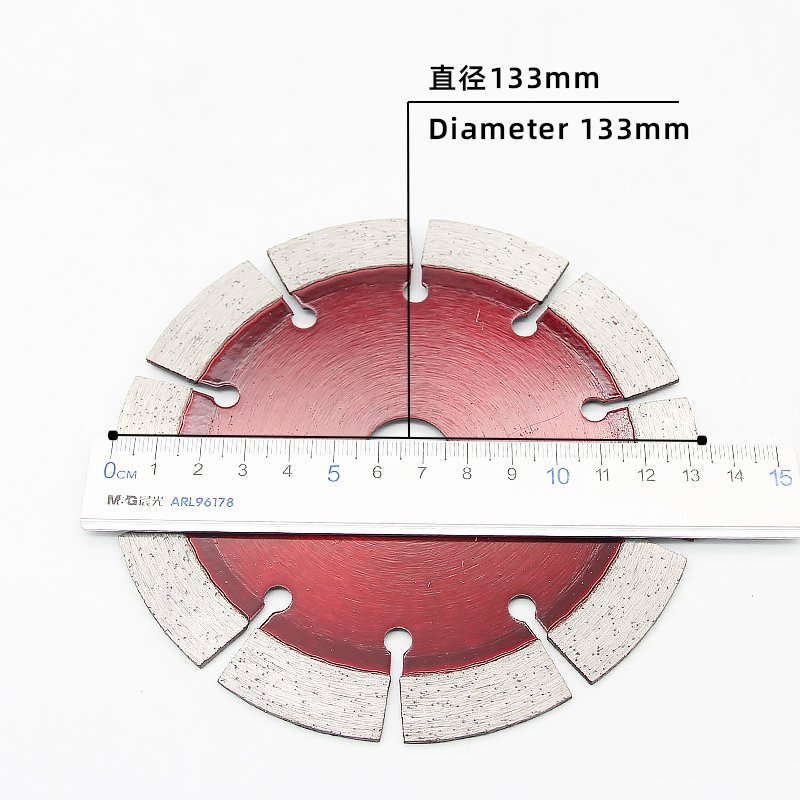

• Diameter: 133mm

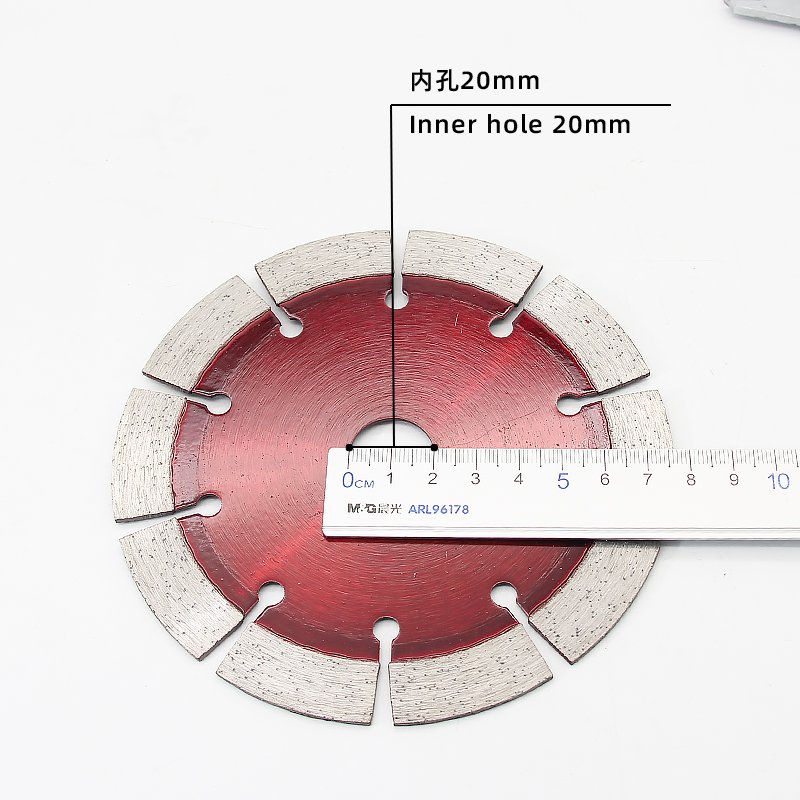

• Bore: 20mm

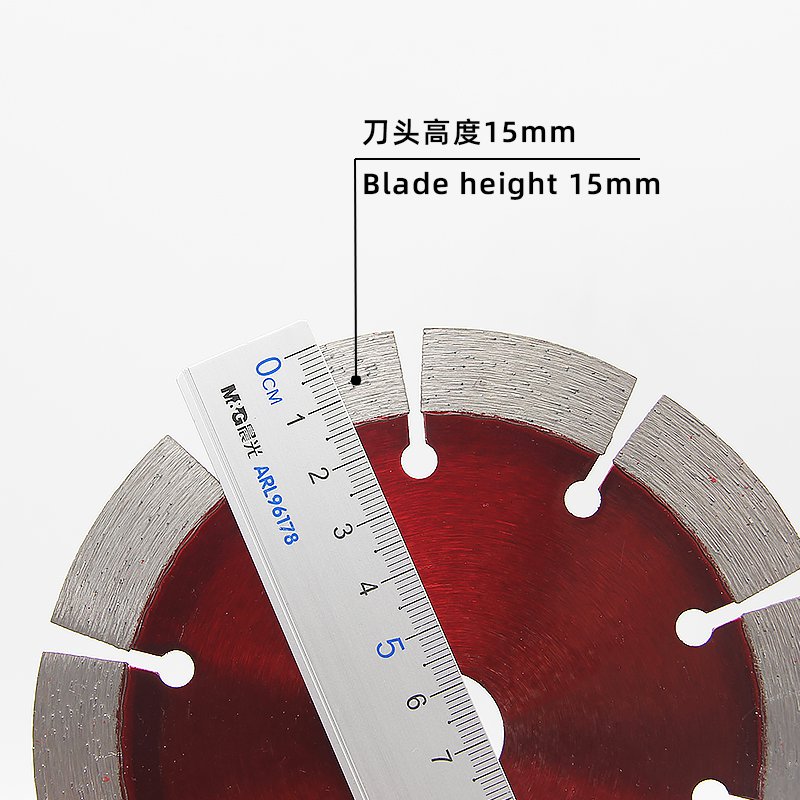

• Segment height: 15mm

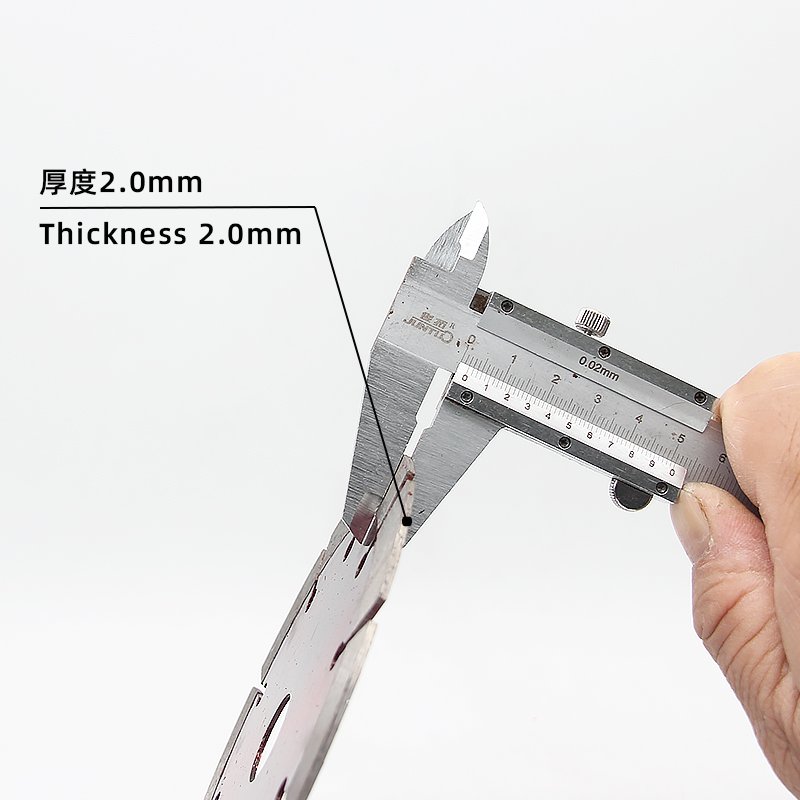

• Thickness: 2.0mm
• Applications: granite, sandstone, rock slabs, marble cutting.

A quotation based only on 133mm is incomplete. Confirm the 20mm bore, maximum speed, flange arrangement and available guard clearance as one machine-fit check.

Material and operating method

Listed use: granite, sandstone, rock slabs, marble cutting.. For approved dry cutting, use controlled passes and cooling intervals instead of forcing the blade through the workpiece.

See more stone cutting product references for another cutting method or rim design.

How this reference differs

This 133mm reference combines a dry-cutting format with a listed 15mm segment. Compare it with 125mm and 150mm alternatives only after guard capacity, spindle fit and required cutting depth are confirmed. The larger outside diameter changes machine compatibility even when the intended stone is similar. A 15mm segment also changes clearance and usable working depth, so the buyer should request a dimensioned side view. Test this reference on the intended granite or concrete type and record motor load during a full-depth pass. Because 133mm is less common than 125mm or 150mm, verify replacement availability and the permitted diameter range stated by the machine maker. Include flange diameter, guard clearance and required kerf in the drawing review. If the work requires repeated deep passes, document core temperature and straightness after the trial instead of judging the blade from cutting speed alone.

OEM drawing and commercial details

Before pricing, confirm the technical drawing and the application limits. Order quantity, destination, packaging style and private-label files complete the commercial enquiry.

Controlled trial procedure

Use a small, representative batch for validation before a volume order. The acceptance record should cover cut quality, wear, machine load and any visible damage.

Send a product enquiry and include reference #3071 with the machine and material details.
